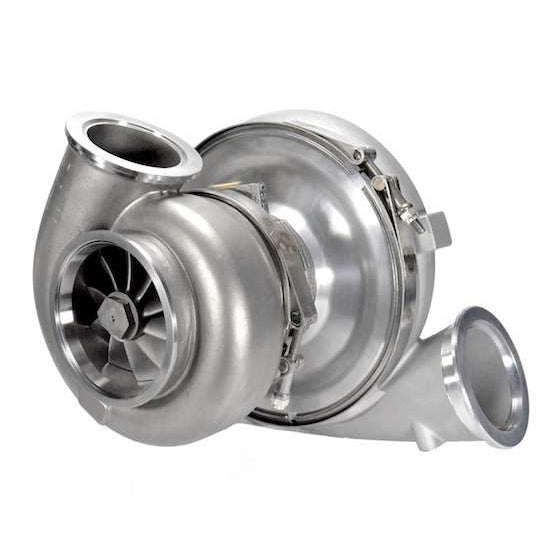

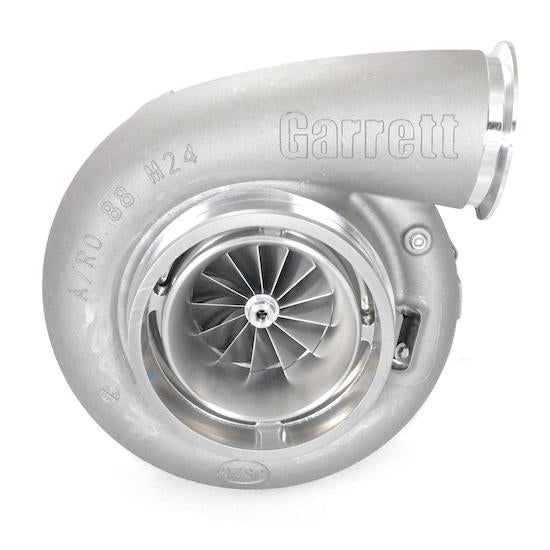

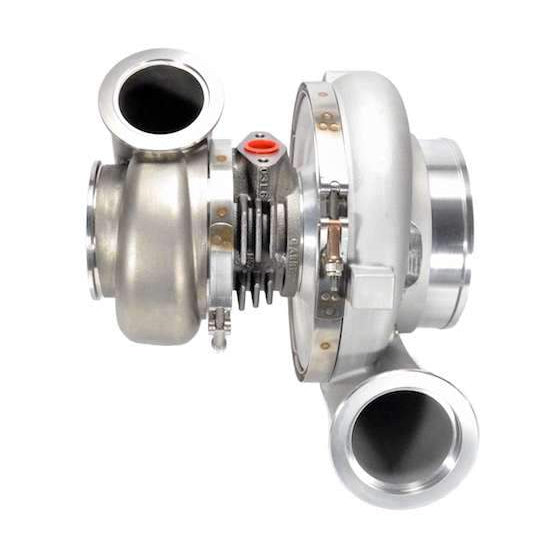

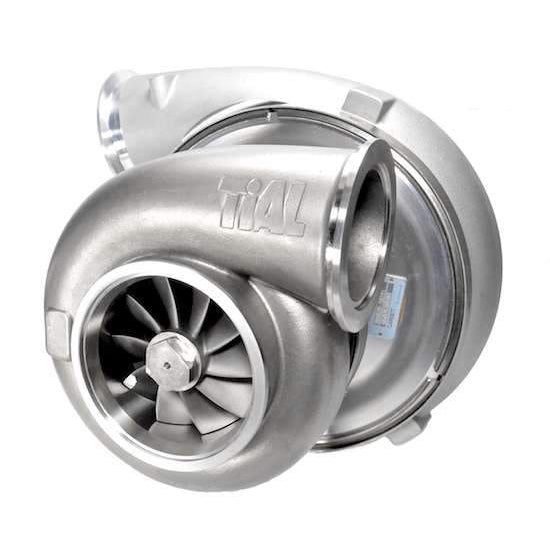

ATP Turbo Gen2 GTX5009R - 80mm with Tial 1.31 A/R Stainless Housing
by ATP Turbo
$10,401.47 NZD
SKU GRT-TBO-F27
Buy now pay later,no extra cost!
Payments from $1,040.14 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GEN2 GTX5009R - 80mm dual ball bearing turbocharger with a TiAL 1.31 A/R stainless steel turbine housing.
Product Features:
- Gen II compressor wheel aerodynamics
- 9%-15% increased flow
- Advance design 91mm GTX50 turbine wheel
- Larger .88 A/R compressor housing volute
- 109mm comp exducer (+ 1mm)with 39% lower inertia
- Compatible with GT and GTX turbine housings
- Compressor Wheel Inducer: 80mm
- Compressor Wheel Exducer: 109mm
- Compressor Wheel Trim: 54
- Compressor Housing: .88 A/R, 6 Inch Inlet (cast ported shroud), and 3.5" V-Band Outlet
- Turbine Wheel Inducer: 99mm
- Turbine Wheel Exducer: 91mm
- Turbine Wheel Trim: 84
- Turbine Housing: 1.31 A/R, TiAL V-Band Inlet and V-Band Outlet Stainless Steel Material
Oil Fittings, Flanges, and Components Solutions:
- Oil feed flange: Product Code: ATP-FLA-008
- Oil feed gasket: Product Code: GRT-GSK-011
- Oil drain flange: Product Code: ATP-FLA-035
- Oil drain gasket: Product Code: GRT-GSK-035
- Compressor Housing Outlet Flange & Clamp Set: Product Code:ATP-FLS-055
- Speed Sensor Kit: ATP-ACS-032
- V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-095
- V-Band Inlet Clamp: Product Code:CLC-CLA-027
- V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-096
- V-Band Outlet Clamp: Product Code:CLC-CLA-028
NOTE: Alternate oil fittings and flanges are available.
Turbine Map:
Garrett Part Numbers:
- 851285-5017S
