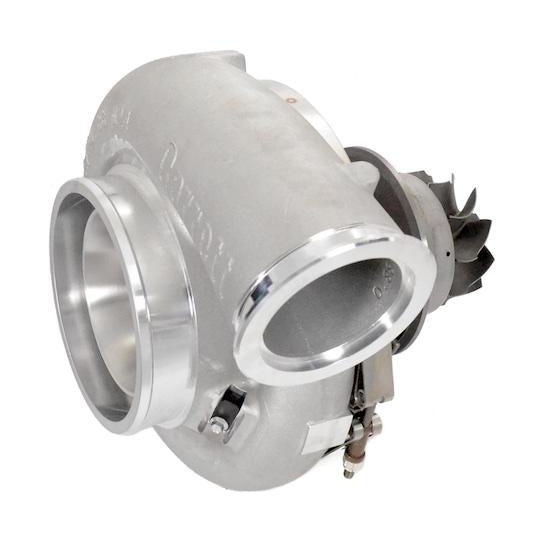

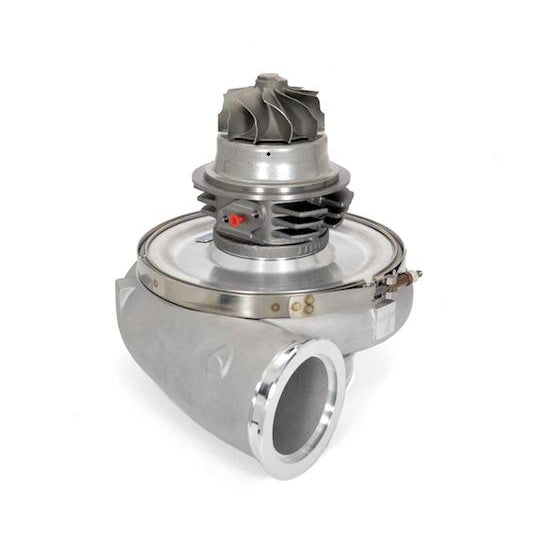

ATP Turbo Gen2 GTX4709R - 80mm Supercore (Turbo Without Turbine Housing) P/N # 851285-5012S
by ATP Turbo
$8,940.43 NZD
SKU GRT-TBO-C84
Buy now pay later,no extra cost!
Payments from $894.04 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GEN2 GTX4709R (80mm supercore) dual ball bearing turbocharger (turbine housing sold separately).
Product Features:
- Gen II compressor wheel aerodynamics
- 9%-15% increased flow
- Larger .88 A/R compressor housing volute
- 109mm comp exducer (+ 1mm) with 39% lower inertia*
- Compatible with GT and GTX turbine housings
- Compressor Wheel Inducer: 80mm
- Compressor Wheel Exducer: 109mm
- Compressor Wheel Trim: 54
- Compressor Housing: .88 A/R, 6 Inch Inlet (cast ported shroud), and 3.5" V-Band Outlet
- Turbine Wheel Inducer: 93mm
- Turbine Wheel Exducer: 84mm
- Turbine Wheel Trim: 82
Oil Fittings, Flanges, and Components Solutions:
- Oil feed flange: Product Code: ATP-FLA-008
- Oil feed gasket: Product Code: GRT-GSK-011
- Oil drain flange: Product Code: ATP-FLA-035
- Oil drain gasket: Product Code: GRT-GSK-035
- Compressor Housing Outlet Flange & Clamp Set: Product Code:ATP-FLS-055
- Speed Sensor Kit: ATP-ACS-032
- T6 Turbine Housing: Product Code: ATP-HSG-014
NOTE: Alternate oil fittings and flanges are available
Turbine Map:
Garrett Part Numbers:
- 851285-5012S
