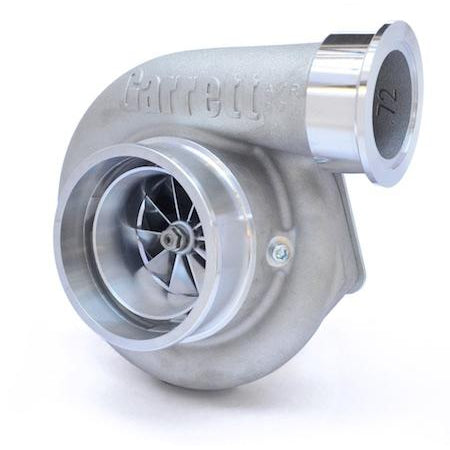

ATP Turbo Gen2 GTX3584RS w/ Garrett turbine V-Band hsg, .83 A/R, Comp V-Band Connection
by ATP Turbo
$6,310.44 NZD
SKU GRT-TBO-B99
Buy now pay later,no extra cost!
Payments from $631.04 with
Enjoy now. Pay Later. Interest free. Learn More
Gen2 GTX3584RS with a Garrett turbine v-band housing, .83 A/R. Configured with a v-band compressor outlet connection.
- Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
- Ultra high flow "RS" blade profile turbine wheel
- Dual ball bearing CHRA rotating assembly
- Compact package capable of 1,000 HP
- Compressor Wheel Inducer: 67 mm
- Compressor Wheel Exducer: 84 mm
- Compressor Wheel Trim: 64
- Compressor Housing: T04S Frame with a 4" inlet and 2.5" v-band outlet w/ Anti-Surge
- Turbine Wheel Inducer: 68 mm
- Turbine Wheel Exducer: 62 mm
- Turbine Wheel Trim: 84
- Turbine Housing: .83 A/R with v-band Inlet/Outlet
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-191
- V-Band Inlet Clamp: Product Code:CLC-CLA-047
- GT 3" V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
- V-Band Outlet Clamp: Product Code:CLC-CLA-048
- Compressor Housing Outlet V-Band Flange (Charge Pipe Side): Product Code: ATP-FLS-240
- Compressor Housing Outlet V-Band Clamp: Product Code: CLC-CLA-053
NOTE: Alternate coolant and oil fittings and flanges are available.
Compressor & Turbine Maps:
Applicable Garrett Part Numbers:
- 846098-5001S
