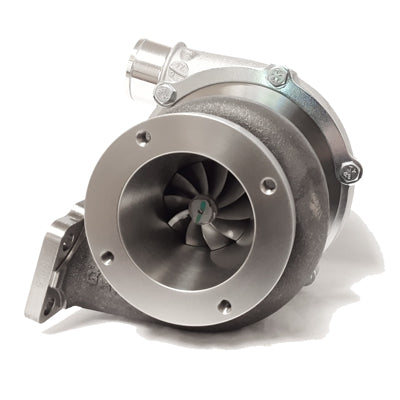

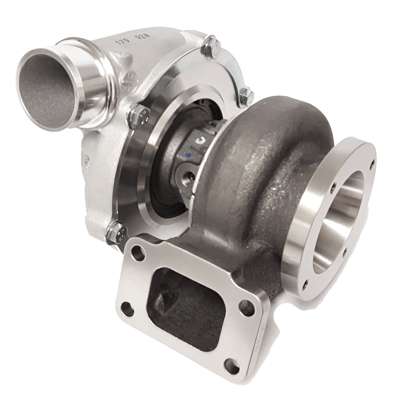

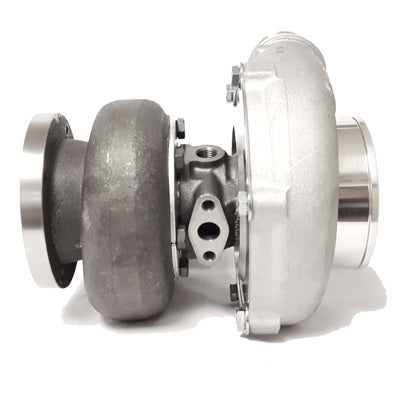

ATP Turbo Gen2 GTX3071R DBB turbo w/ 1.06 A/R T3 Tbn Hsg GT 4 Bolt 3" Conical Exit
by ATP Turbo
$4,635.75 NZD
SKU GRT-TBO-C27
Buy now pay later,no extra cost!
Payments from $463.57 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GEN2 GTX3071R dual ball bearing turbocharger with .63 A/R T3 turbine housing and GT 4 BOLT 3" conical exit. Advanced GEN2 billet compressor wheel capable of 650HP!
Product Features:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 54mm
- Compressor Wheel Exducer: 71mm
- Compressor Wheel Trim: 58
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 60mm
- Turbine Wheel Exducer: 55mm
- Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- T3 Inlet Weld Flange (Stainless Steel): Product Code: ATP-FLS-038 (ATP-FLS-001 -mild steel)
- Gasket, T3 Turbine Inlet - UNDIVIDED: Product Code: GRT-GSK-005
- Discharge Flange GT 4 Bolt 3" (Stainless Steel): Product Code: ATP-FLS-085 (ATP-FLS-013 -mild steel)
- Gasket, Downpipe (Turbine outlet) Gasket, "GT 4 Bolt 3" opening: Product Code: ATP-GSK-018
NOTE: Alternate coolant and oil fittings and flanges are available.
Compressor & Turbine Maps:
Applicable Garrett Part Numbers:
- 851154-5002S
