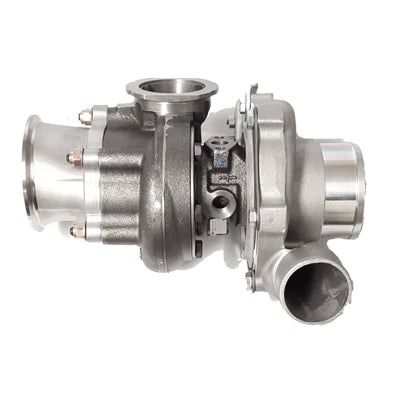

ATP Turbo Gen2 GTX3071R 4" inlet and 2" outlet T04E Frame with Anti-Surge DBB turbo w/ .86 A/R VB25 int. wg.
by ATP Turbo
$4,816.88 NZD
SKU GRT-TBO-H67-64AR-TS
Buy now pay later,no extra cost!
Payments from $481.68 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GEN2 GTX3071R anti-surge 4" inlet and 2" outlet T04E frame dual ball bearing turbocharger with .86 A/R VB25 internally gated (1 bar actuator) "GT28 style" 5 bolt into 3" v-band turbine housing. Advanced GEN2 billet compressor wheel capable of 650HP!
Product Features:

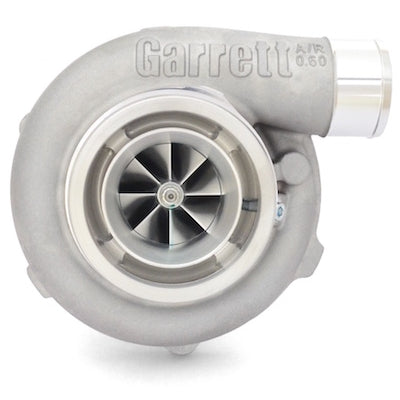

- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 54mm
- Compressor Wheel Exducer: 71mm
- Compressor Wheel Trim: 58
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 60mm
- Turbine Wheel Exducer: 55mm
- Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008

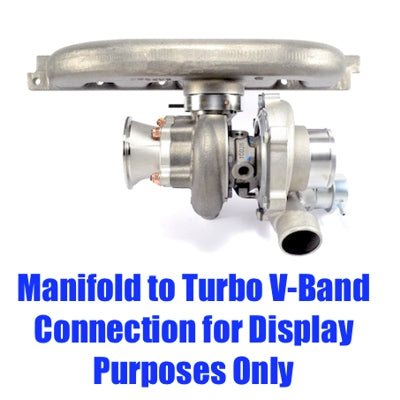

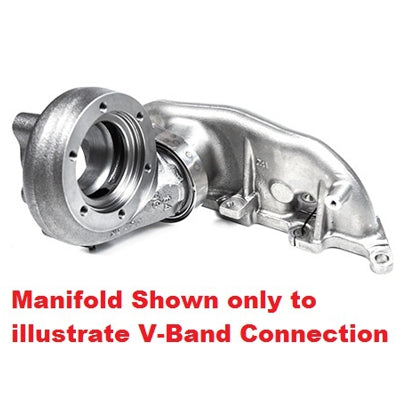

- V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-093
- V-Band Inlet Clamp: Product Code:CLC-CLA-025
- 3" Stainless V-Band Flange (for Downpipe): Product Code:ATP-FLS-063
- 3" Stainless V-Band Clamp (for downpipe): Product Code:CLC-CLA-013
NOTE: Alternate coolant and oil fittings and flanges are available.
Compressor & Turbine Maps:
Applicable Garrett Part Numbers:
- 851154-5002S
