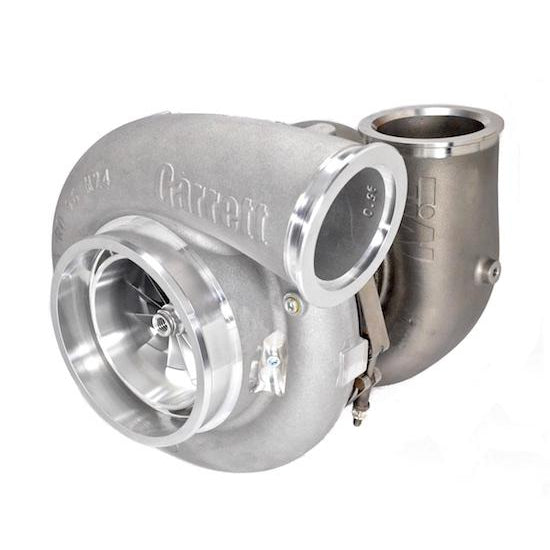

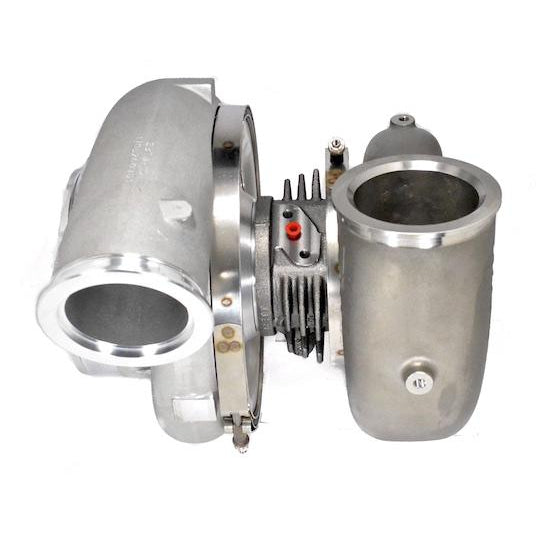

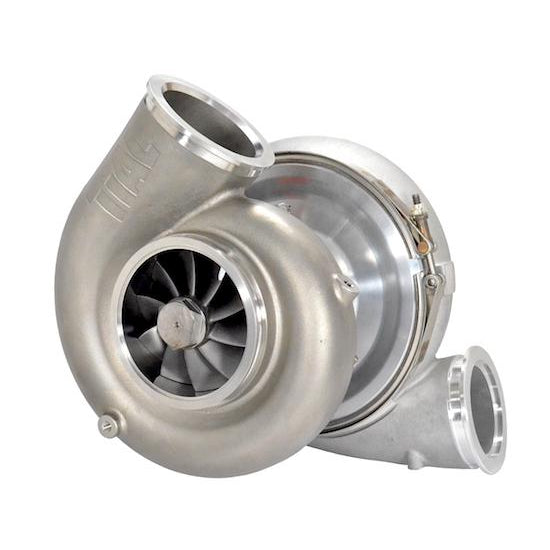

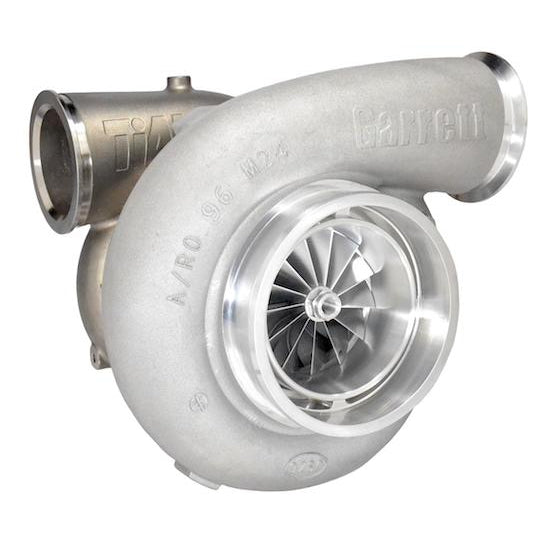

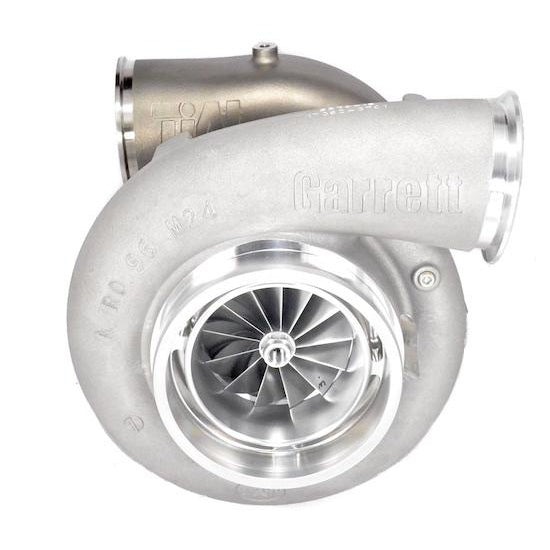

ATP Turbo GEN2 - Garrett GTX5533R - 88mm (aka GTX55-88) W/ 1.30 A/R TiAL Stainless V-Band Turbine Hsg.
by ATP Turbo
$11,706.20 NZD
SKU GRT-TBO-K76
Buy now pay later,no extra cost!
Payments from $1,170.62 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GEN2 GTX5533R (88mm) also known as the GEN2 "GTX55-88", dual ball bearing turbocharger with a 1.30 A/R TiAL Stainless Steel V-Band Inlet and V-Band Outlet Turbine Housing.
PRODUCT FEATURES:
Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
Forged billet aluminum compressor wheel
Machined speed sensor port
Light weight billet backplate
Oil cooled bearing housing (no water ports)
Dual ball bearing CHRA rotating assembly
PRODUCT SPECIFICATIONS:
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:851285-5002S
PRODUCT FEATURES:
PRODUCT SPECIFICATIONS:
- Compressor Wheel Inducer: 88mm
- Compressor Wheel Exducer: 133mm
- Compressor Wheel Trim: 44
- Turbine Wheel Inducer: 112mm
- Turbine Wheel Exducer: 102mm
- Turbine Wheel Trim: 84
OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Oil feed flange: Product Code: ATP-FLA-008
- Oil feed gasket: Product Code: GRT-GSK-011
- Oil drain flange: Product Code: ATP-FLA-035
- Oil drain gasket: Product Code: GRT-GSK-035
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- Compressor Housing Outlet Flange & Clamp Set: Product Code:ATP-FLS-055
- V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-225
- V-Band Inlet Clamp: Product Code:CLC-CLA-045
- V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-226
- V-Band Outlet Clamp: Product Code:CLC-CLA-046
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
