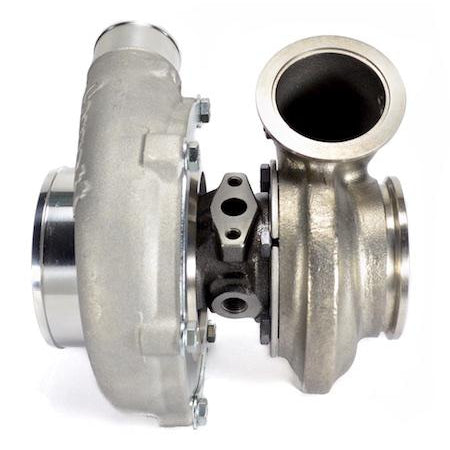

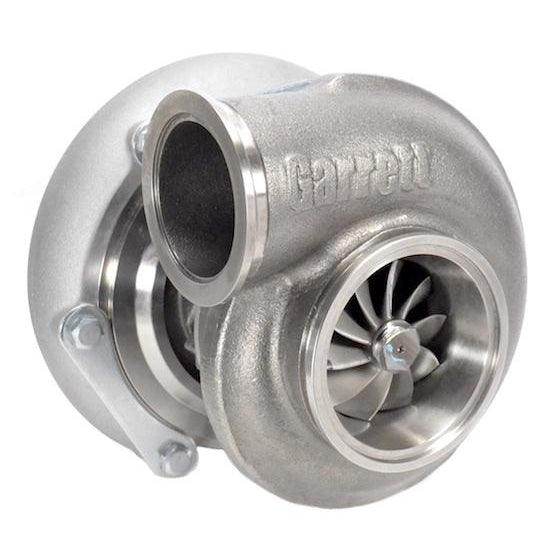

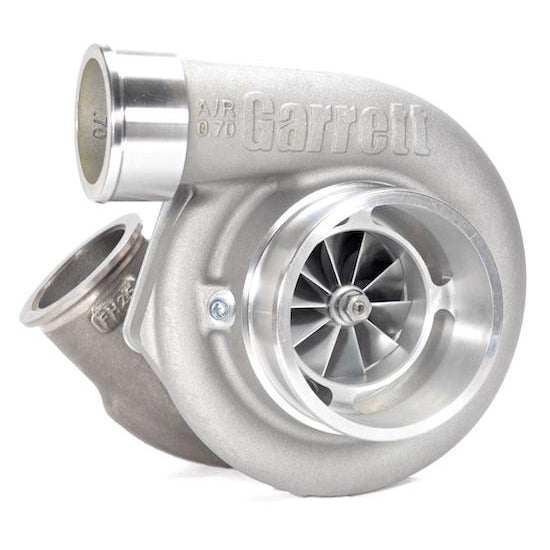

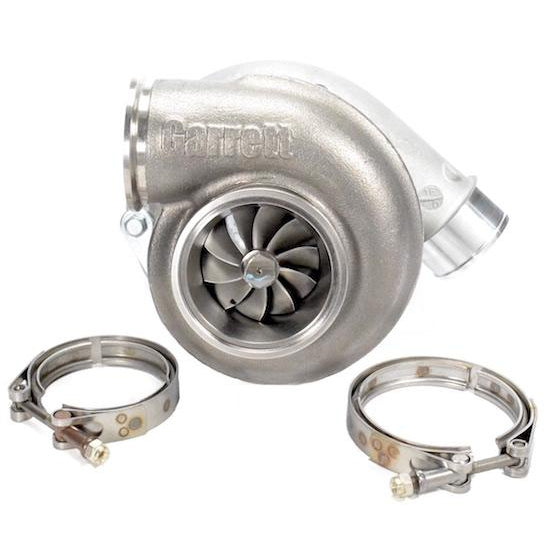

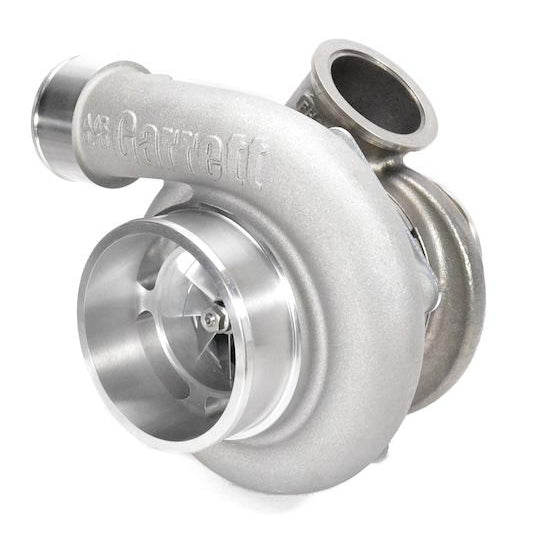

ATP Turbo GEN2 - Garrett GTX3582R REVERSE Turbo with 1.01 A/R Garrett Undivided V-Band Entry Turbine Housing
Buy now pay later,no extra cost!
Payments from $615.49 with
Garrett GEN2 Reverse Rotation GTX3582R dual ball bearing turbocharger with a 1.01 A/R V-Band inlet and V-Band outlet Ni-Resist turbine housings. Advanced GEN2 billet compressor wheel capable of 850HP!
The Garrett reverse rotation series spins counterclockwise and offers new housing layout options for applications where a standard turbocharger (spins clockwise) does not provide sufficient clearance. Upgrading an OEM counterclockwise spinning turbo has never been easier with the Garrett GEN2 GTX Reverse Rotation series!
PRODUCT FEATURES:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Reverse Rotation CHRA rotating assembly (spins counterclockwise)
- Potential upgrade turbo solution when standard rotation turbo exceeds space limitations
- Solution for symmetrical ("mirror") twin turbo setups
- Compressor Wheel Inducer: 66mm
- Compressor Wheel Exducer: 82mm
- Compressor Wheel Trim: 64
- Compressor Housing A/R: 0.70
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- Inlet V-Band Flange (For Turbo Manifold): ATP-FLS-191
- Inlet V-Band Clamp: CLC-CLA-265
- Outlet V-Band Flange (For Down-pipe): ATP-FLS-246
- Outlet V-Band Clamp: CLC-CLA-048
NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
- 844626-5004S
- 856803-5006S
- 740902-0058
