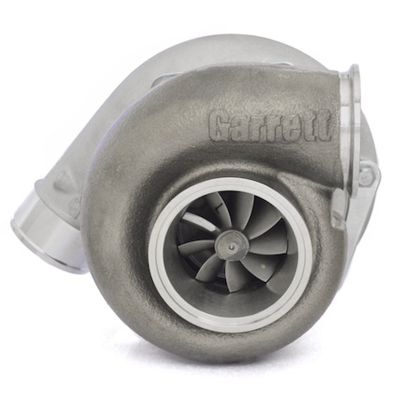

ATP Turbo GEN2 - Garrett GTX3582R (Compact T04E Frame GTX3076R Style Comp. Hsg.) & .83 A/R Garrett V-Band THS
by ATP Turbo
$5,561.51 NZD
SKU GRT-TBO-895-61ARI
Buy now pay later,no extra cost!
Payments from $556.15 with
Enjoy now. Pay Later. Interest free. Learn More

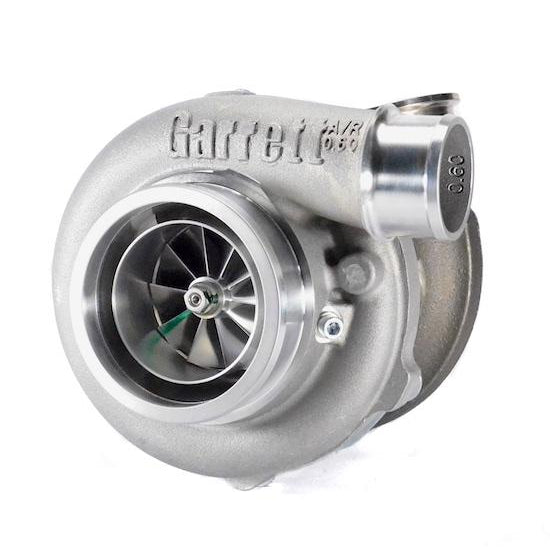

Compact Frame Garrett GEN2 GTX3582R dual ball bearing turbocharger, including Ni-Resist V-Band Inlet and V-Band Outlet .83 A/R Turbine Housing. The 850HP Garrett Gen2 GTX3582R is NOW available as a drop-in upgrade for a GTX3076R!

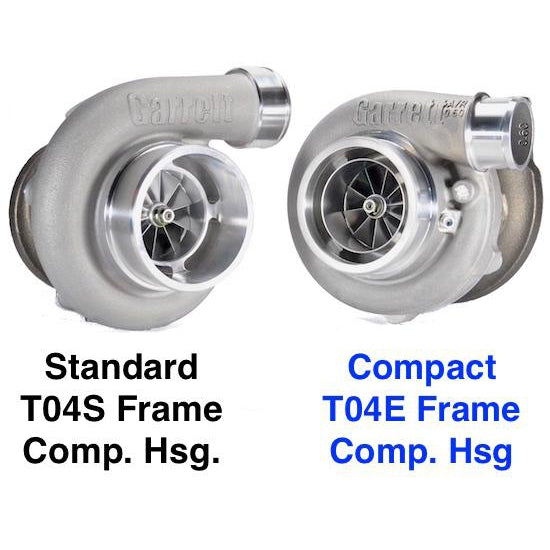

Compact GEN2 GTX T04E Frame compressor housing with 4" ported shroud inlet, speed sensor port, and boost pressure source port. Recommended solution for setups unable to fit the standard T04S frame compressor housing.
PRODUCT FEATURES:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 66mm
- Compressor Wheel Exducer: 82mm
- Compressor Wheel Trim: 64
- Compressor Housing: Compact T04E Frame, .60 A/R, 4" Ported Shroud Inlet, 2" out.
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-191
- V-Band Inlet Clamp: Product Code:CLC-CLA-047
- V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
- V-Band Outlet Clamp: Product Code:CLC-CLA-048
NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
- 851154-5004S
