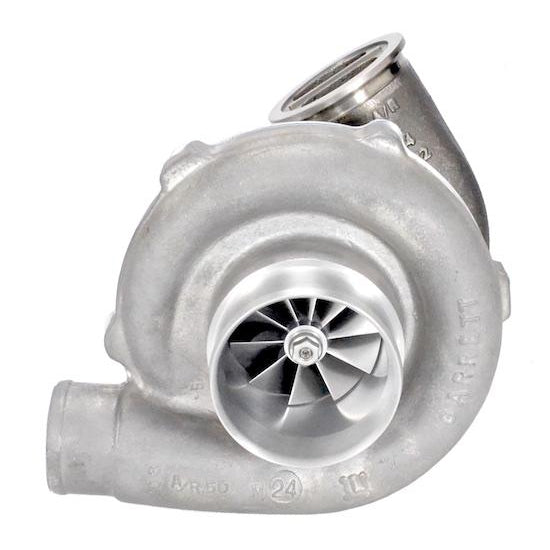

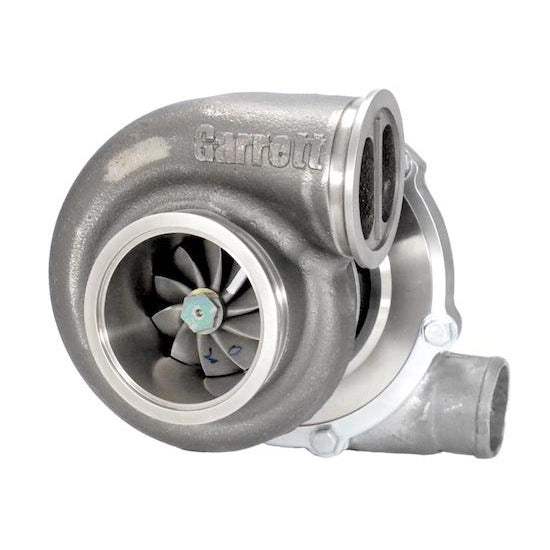

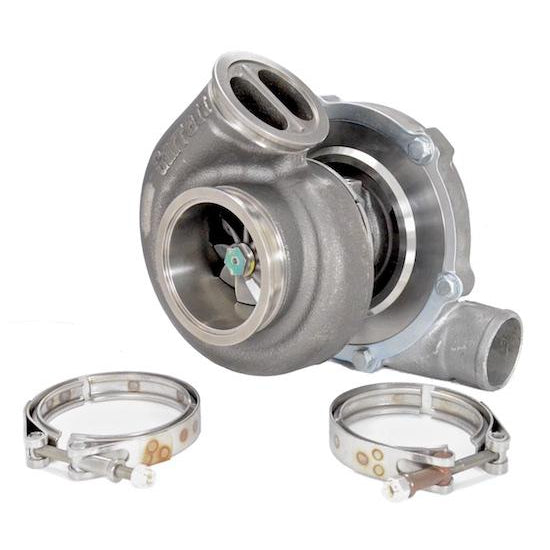

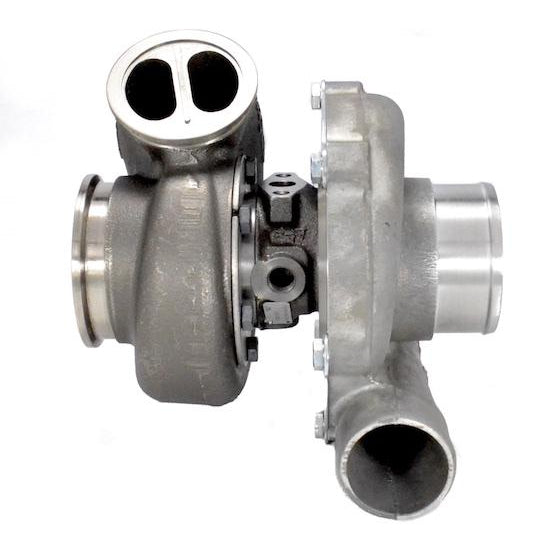

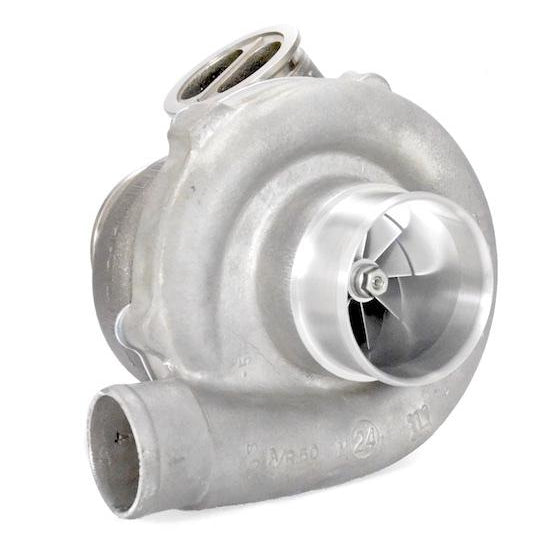

ATP Turbo GEN2 - Garrett GTX3582R (Compact T04E Frame 3" inlet Comp. Hsg.) & 1.01 A/R Garrett Divided VB Entry
by ATP Turbo
$5,561.51 NZD
SKU GRT-TBO-896
Buy now pay later,no extra cost!
Payments from $556.15 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GEN2 GTX3582R dual ball bearing turbocharger with a compact T04E frame (3" inlet and 2" outlet compressor housing) and a 1.01 A/R Divided (Twin-scroll) V-Band Inlet and GT 3" V-Band outlet turbine housing (Ni-Resist Material). Advanced GEN2 billet compressor wheel capable of 850HP!
The Garrett GEN2 GTX3582R fits turbine housings for Garrett GT35 and GTX35 series turbochargers with a 68mm inducer and 84 trim turbine wheel.
PRODUCT FEATURES:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 66mm
- Compressor Wheel Exducer: 82mm
- Compressor Wheel Trim: 64
- Compressor Housing: Compact T04E Frame (3" Inlet & 2" Outlet)
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
- Turbine Housing: 1.01 A/R Divided (Twin-Scroll) Inlet & GT 3" V-Band Outlet
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- Divided V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-HSG-250
- V-Band Inlet Clamp: Product Code:CLC-CLA-047
- GT 3" V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
- V-Band Outlet Clamp: Product Code:CLC-CLA-048
NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
- 851154-5004S
