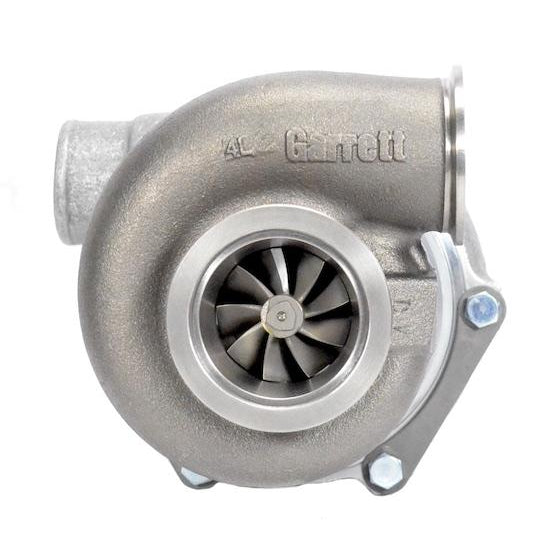

ATP Turbo GEN2 - Garrett GTX2867R Turbo with .57 A/R Garrett Compact V-band Entry Turbine Housing
by ATP Turbo
$4,320.16 NZD
SKU GRT-TBO-883
Buy now pay later,no extra cost!
Payments from $432.01 with
Enjoy now. Pay Later. Interest free. Learn More
GEN2 - Garrett GTX2867R Turbo with .57 A/R Garrett Compact V-band Entry Turbine Housing (P/N: ATP-HSG-256)
Garrett GEN2 GTX2867R dual ball bearing turbocharger. Advanced GEN2 billet compressor wheel capable of 550HP!
The Garrett GEN2 GTX2867R fits turbine housings for Garrett GT28 and GTX28 series turbochargers with a 54mm inducer and 76 trim turbine wheel.
PRODUCT FEATURES:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 50mm
- Compressor Wheel Exducer: 67mm
- Compressor Wheel Trim: 55
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 54mm
- Turbine Wheel Exducer: 47mm
- Turbine Wheel Trim: 76
TURBINE HOUSING OPTIONS:
- Ni-Resist V-Band Inlet & Outlet. Available in .57 or .72 A/R
ALTERNATIVE TURBINE HOUSING OPTIONS:
- T25 Inlet, Internally Gated, and 5 Bolt GT28 Outlet. Available in .64 or .83 A/R Product Code: ATP-HSG-005
- T3 Inlet and 2.5" V-Band Outlet. Available in .63 or .82 A/R Product Code: ATP-HSG-041
- TiAL Stainless Steel V-Band Inlet & Outlet. Available in .52 A/R, .64 A/R, .86 A/R
Additional turbine housing options available in the Turbine Housing Section. Available here!
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-208
- V-Band Inlet Clamp: Product Code:CLC-CLA-035
- V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-209
- V-Band Outlet Clamp: Product Code:CLC-CLA-047
NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
Complete Turbo P/N: 856800-5005S
