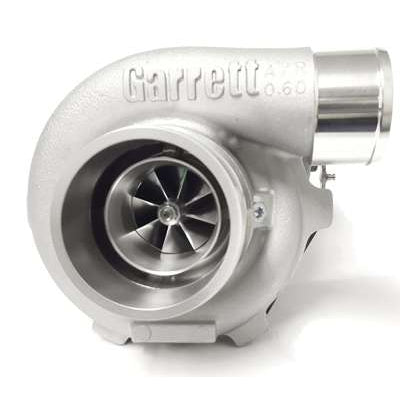

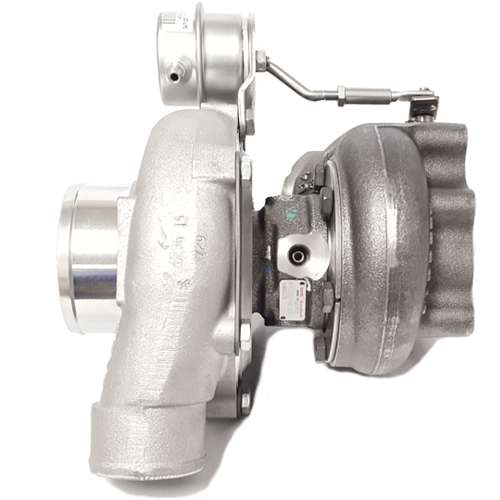

ATP Turbo GEN2 - Garrett GTX2860R Turbo with .86 A/R Int W/G VB25 Entry Garrett Tbn Hsg, 1 Bar Actuator
by ATP Turbo
$4,056.46 NZD
SKU GRT-TBO-894
Buy now pay later,no extra cost!
Payments from $405.64 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GEN2 GTX2860R dual ball bearing turbocharger with a .86 A/R VB25 Inlet (V-Band inlet machined from T25), 5 bolt outlet, and a 1 BAR wastegate actuator. Advanced GEN2 billet compressor wheel capable of 475HP!
Product Features:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 46mm
- Compressor Wheel Exducer: 60mm
- Compressor Wheel Trim: 58
- Compressor Housing: 0.60 A/R, GEN II T04B Frame with 3" ported shroud inlet and 2" outlet
- Turbine Wheel Inducer: 54mm
- Turbine Wheel Exducer: 47mm
- Turbine Wheel Trim: 76
- Turbine Housing: .86 A/R, VB25 Inlet (machined from T25), 5 Bolt Outlet, and internally gated design
- Wastegate: Includes 1 BAR Actuator
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-093
- V-Band Inlet Clamp: Product Code:CLC-CLA-025
- 5 Bolt "GT28 Style" Outlet Flange (for Downpipe): Product Code:ATP-FLS-088
- 5 Bolt "GT28 Style" Outlet Gasket: Product Code:ATP-GSK-016
NOTE: Alternate coolant and oil fittings and flanges are available.
Compressor & Turbine Maps:
Applicable Garrett Part Numbers:
- 849894-5001S
- 856800-5004S
