ATP Turbo GEN2 - Garrett GTX2860R Turbo with .72 A/R Garrett Compact V-band Entry Turbine Housing
by ATP Turbo
$4,114.68 NZD
SKU GRT-TBO-886
Buy now pay later,no extra cost!
Payments from $411.46 with
Enjoy now. Pay Later. Interest free. Learn More

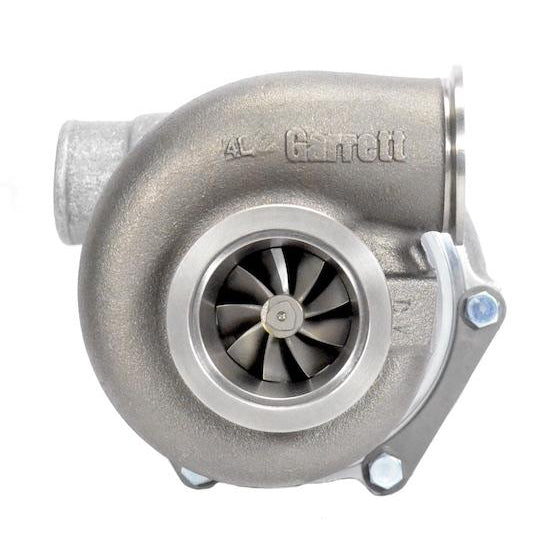

GEN2 - Garrett GTX2860R Turbo with .72 A/R Garrett Compact V-band Entry Turbine Housing
Garrett GEN2 GTX2860R dual ball bearing turbocharger. Advanced GEN2 billet compressor wheel capable of 475HP!
The Garrett GEN2 GTX2860R fits turbine housings for Garrett GT28 and GTX28 series turbochargers with a 54mm inducer and 76 trim turbine wheel.
PRODUCT FEATURES:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 46mm
- Compressor Wheel Exducer: 60mm
- Compressor Wheel Trim: 58
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 54mm
- Turbine Wheel Exducer: 47mm
- Turbine Wheel Trim: 76
TURBINE HOUSING OPTIONS:
- Ni-Resist V-Band Inlet & Outlet. Available in .57 or .72 A/R
ALTERNATIVE TURBINE HOUSING OPTIONS:
- T25 Inlet, Internally Gated, and 5 Bolt GT28 Outlet. Available in .64 or .83 A/R Product Code: ATP-HSG-005
- T3 Inlet and 2.5" V-Band Outlet. Available in .63 or .82 A/R Product Code: ATP-HSG-041
- TiAL Stainless Steel V-Band Inlet & Outlet. Available in .52 A/R, .64 A/R, .86 A/R
Additional turbine housing options available in the Turbine Housing Section. Available here!
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-208
- V-Band Inlet Clamp: Product Code:CLC-CLA-035
- V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-209
- V-Band Outlet Clamp: Product Code:CLC-CLA-047
NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
Complete Turbo P/N: 856800-5002S
