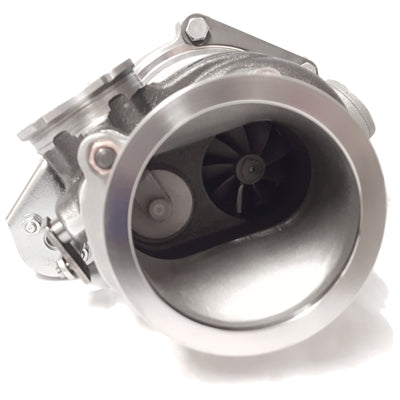

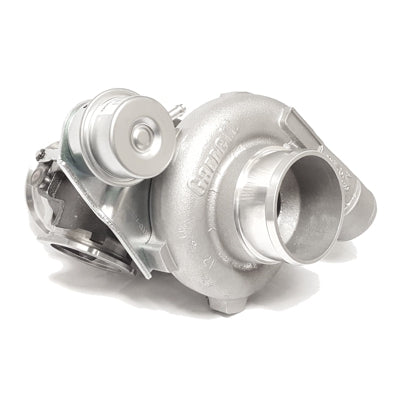

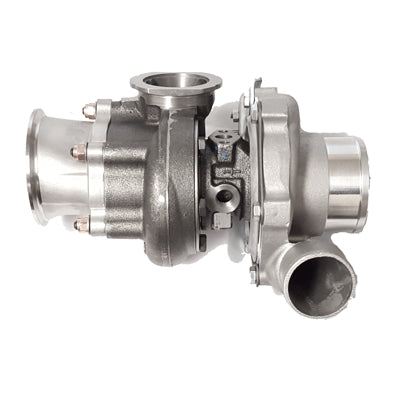

ATP Turbo Gen1 Garrett GTX2860R w/ .86 A/R VB25 Flanged Garrett Int W/G w/act with VB AdpOut
by ATP Turbo
$3,828.41 NZD
SKU GRT-TBO-G14
Buy now pay later,no extra cost!
Payments from $382.84 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GTX2860R dual ball bearing turbocharger with .86 A/R VB25 flanged Garrett intrnal wastegate/actuator and v-band adpater out turbine housing. Supports up to 400HP potential flow.
Product Specifications:
Compressor and Turbine Maps:
- Compressor Wheel Inducer: 45.7mm
- Compressor Wheel Exducer: 60mm
- Compressor Wheel Trim: 49
- Turbine Wheel Inducer: 53.9mm
- Turbine Wheel Trim: 76
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-093
- V-Band Inlet Clamp: Product Code:CLC-CLA-025
- 3" Stainless V-Band Flange (for Downpipe): Product Code:ATP-FLS-063
- 3" Stainless V-Band Clamp (for downpipe): Product Code:CLC-CLA-013
Compressor and Turbine Maps:
Garrett Part Numbers:
- 816364-5001S
- 836040-5002S
