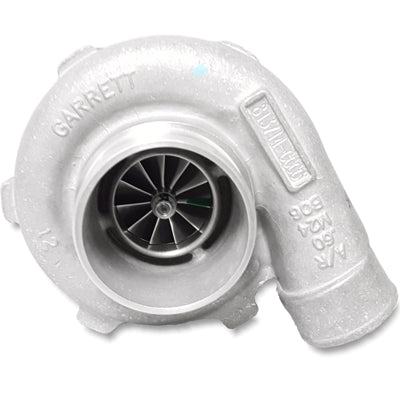

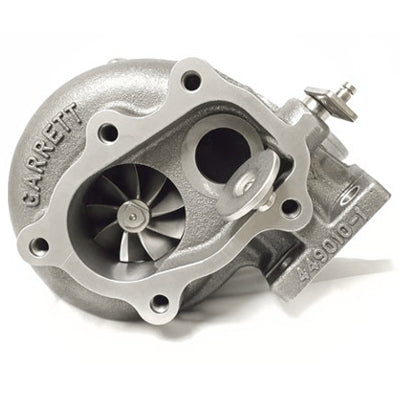

ATP Turbo Gen1 Garrett GTX2860R dual ball bearing turbo with .86 A/R T25 INT W/G Turbine Hsg
Buy now pay later,no extra cost!
Payments from $369.59 with

Garrett GTX2860R dual ball bearing turbocharger with .86 A/R T25 internal wastegate turbine housing. Supports up to 400HP potential flow.
Product Specifications:
- Compressor Wheel Inducer: 45.7mm
- Compressor Wheel Exducer: 60mm
- Compressor Wheel Trim: 49
- Turbine Wheel Inducer: 53.9mm
- Turbine Wheel Trim: 76
| Product | Product Code |
|---|---|
| Coolant - Water Options (Requires 2 units) | 14mm Coolant |
| Oil feed options, -4 AN with built-in Restrictor | ATP-OIL-021 |
| Oil drain flange | ATP-FLA-010 |
| Oil drain gasket | GRT-GSK-008 |
| Inlet Flange, T25/GT25 Inlet Weld (stainless steel) | ATP-FLS-037 |
| Inlet Flange, T25/GT25 Inlet Weld (mild steel) | ATP-FLS-002 |
| Inlet Gasket, T25/GT25 Turbine Inlet | GRT-GSK-004 |
| Outlet Flange, GT25R/GT28R/GT28RS/GT3071R-WG (stainless steel) | ATP-FLS-088 |
| Outlet Flange, GT25R/GT28R/GT28RS/GT3071R-WG (mild steel) | ATP-FLS-081 |
| Outlet Gasket, 5-Bolt for Garrett T25 | ATP-GSK-016 |
NOTE: Alternate coolant and oil fittings and flanges are available.
Compressor and Turbine Maps:
Garrett Part Numbers:
- 816364-5001S
- 836040-5002S
