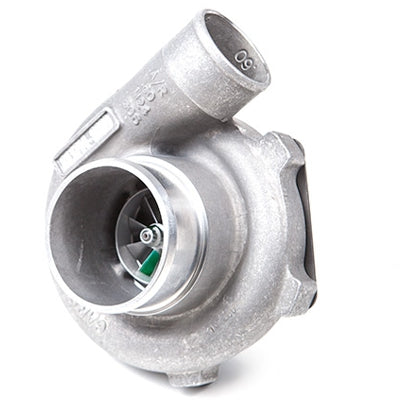

ATP Turbo Gen1 Garrett GTX2860R dual ball bearing turbo with .82 A/R T31 4 bolt Turbine Hsg
by ATP Turbo
$3,695.92 NZD
SKU GRT-TBO-C53
Buy now pay later,no extra cost!
Payments from $369.59 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GTX2860R dual ball bearing turbo with .82 A/R T31 4 bolt turbine housing. The GTX2860R dual ball bearing turbo has the ultra high flow compressor wheel featuring Garrett 10-Blade technology producing 400 HP potential flow.
Product Specifications:
- Compressor Wheel Inducer: 45.7mm
- Compressor Wheel Exducer: 60mm
- Compressor Wheel Trim: 58
- Turbine Wheel Inducer: 53.9mm
- Turbine Wheel Trim: 76
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- T3 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-038
- T3 Inlet Gasket: Product Code:GRT-GSK-005
- 4 Bolt "T31" Narrow Outlet Flange (for Downpipe): Product Code:ATP-FLS-084
- 4 Bolt "T31" Outlet Gasket: Product Code:ATP-GSK-012
Compressor & Turbine Maps:
Garrett Part Numbers:
- 816364-5001S
- 836040-5002S
