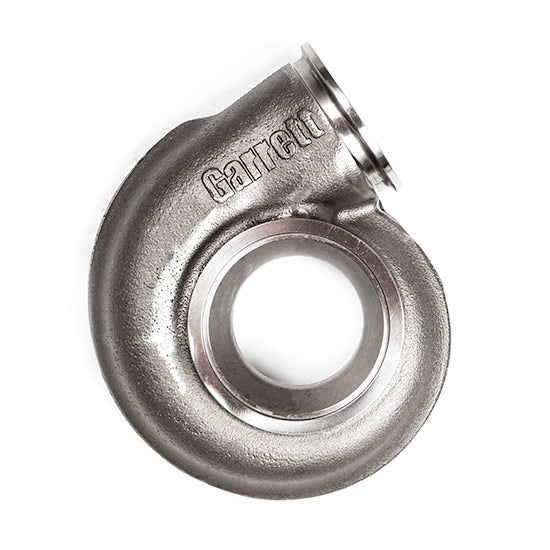

ATP Turbo Garrett - V-band Entry & Ni-Resist Turbine Housing for GT29/GTX29 (R-WG: 56.5mm) Series
by ATP Turbo
$1,333.70 NZD
SKU ATP-HSG-316-GT30-101AR
Buy now pay later,no extra cost!
Payments from $133.37 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett Undivided V-band inlet & outlet turbine housing in Ni-Resist material; for GT30 (R-WG: 56.5mm) series turbochargers. Choose from three turbine housing A/R sizes (.61, .83, and 1.01 A/R). Turbine outlet is a 3-inch Garrett GT V-Band flange (81mm centering ring).
NOTE: Turbine Housing is compatible with specific trimmed down version of the GT30 series models with a 56.5mm inducer turbine wheel.
The turbine housing includes a turbine inlet clamp and turbine outlet clamp.
PRODUCT CONTENTS:
- (1 unit) Ni-Resist Garrett turbine housing
- (1 unit) V-band clamp for turbine inlet
- (1 unit) V-band clamp for turbine outlet
APPLICATION NOTES:
- Compatible turbine housing inlet flange (product code: ATP-FLS-191)
- Compatible turbine housing outlet flange - select 81mm centering ring (product code: ATP-FLS-105)
- Compatible turbine housing inlet clamp (product code: CLC-CLA-047)
- Compatible turbine housing outlet clamp (product code: CLC-CLA-048)
- Choose the correct turbo model and trim to ensure product fitment.
APPLICABLE GARRETT PART NUMBERS:
- 740902-0046
- 740902-0047
- 740902-0048
- 740902-0049
- 740902-0050
- 740902-0051
COMPATIBLE GARRETT TURBO MODELS:
- GT3071R-WG (84 Trim)
- GT3071R-WG (90 Trim)
- GT3076R-WG-C10 (84 Trim)
- GT3076R-WG (90 Trim)
