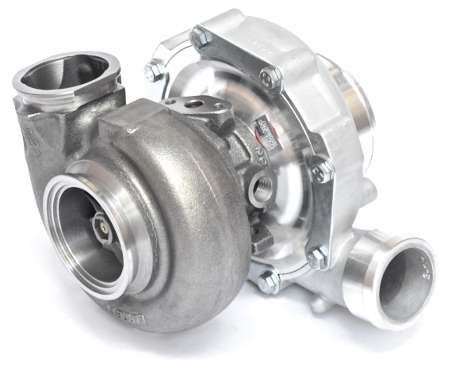

ATP Turbo Garrett GTX4088R Turbocharger, including Turbine Housing (GTX-R Series)

Sale
Original Price $6,335.61 NZD
Current Price $5,702.05 NZD
SKU GRT-TBO-326-106AR-N/N
Buy now pay later,no extra cost!

Payments from $570.20 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

GTX4088R and T3 Inlet Turbine Housing


GTX4088R and optional V-Band Inlet Turbine Housing



New GTX4088R dual ball bearing turbo with ultra high flow compressor wheel and featuring Garrett 11-Blade technology. 850HP potential flow.

Includes Turbine Housing. Choose from T4 Inlet, T3 Inlet, or V-band Inlet. 3" V-band Outlet.

PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 65.0mm
  • Compressor Wheel Exducer: 88.4mm
  • Compressor Wheel Trim: 54
  • Turbine Wheel Inducer: 77.0mm
  • Turbine Wheel Exducer: 68.0mm
  • Turbine Wheel Trim: 78
  • Standard compressor housing is T04H Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.
TURBINE HOUSING OPTIONS:
  • T4 Divided Inlet, 3" V-band Outlet (.85, .95, 1.06 or 1.19 A/R)
  • T3 Inlet, 3" V-band Outlet (.89, .99, or 1.11 A/R)
  • V-band Inlet optional, 3" V-band Outlet. Available in .89, .99, or 1.11 A/R.
APPLICATION NOTES:
  • Uses same oil and coolant fittings as the standard GT4088R turbo
COMPRESSOR & TURBINE MAPS:



APPLICABLE GARRETT PART NUMBERS:
  • 825614-5002S
  • 825614-5004S
  • 825614-5005S
  • 803614-2
  • 803614-4
  • 803614-5
  • 751450-0021
  • 751450-21
