ATP Turbo Garrett GTX3584RS (with T3 Inlet & 4 Bolt Outlet Turbine Housing)
by ATP Turbo
$5,971.90 NZD
SKU GRT-TBO-596-T382AR
Buy now pay later,no extra cost!
Payments from $597.19 with
Enjoy now. Pay Later. Interest free. Learn More

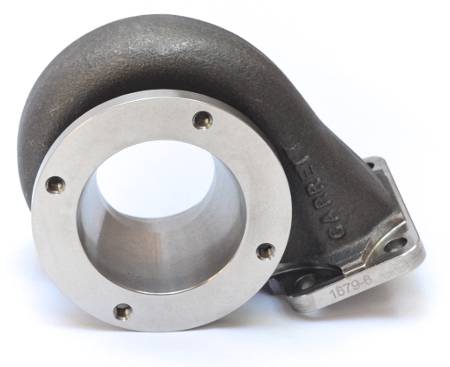

T3 Inlet, 3" GT 4 Bolt Outlet, and (.82 or 1.06) A/R Turbine Housing for GTX3584RS
Garrett GTX3584RS dual ball bearing turbocharger, including hose bead compressor outlet housing; and a Garrett T3 Inlet, and 3" GT 4 Bolt outlet turbine housing.
The Garrett GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!
** Hose Bead Outlet Compressor Housing.
PRODUCT FEATURES:
- Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
- Ultra high flow "RS" blade profile turbine wheel
- Dual ball bearing CHRA rotating assembly
- Compact package capable of 1,000HP
- Compressor Wheel Inducer: 67mm
- Compressor Wheel Exducer: 84mm
- Compressor Wheel Trim: 64
- Compressor Housing A/R: 0.72
- Compressor Housing Inlet: 4 inch diameter
- Compressor Housing Outlet: 2.5 inch diameter
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
- T3 Inlet
- 3 Inch GT 4 Bolt Outlet
- .82 or 1.06 A/R
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
NOTE: Alternate coolant and oil fittings and flanges are available.
TURBINE HOUSING INSTALLATION COMPONENTS:
- T3 Inlet Gasket (Product Code: ATP GSK-005)
- T3 Inlet Flange (Product Code: ATP FLS-038)
- 3 Inch GT 4 Bolt Flange (Product Code: ATP-FLS-085)
- 3 Inch GT Outlet Gasket (Product Code: ATP GSK-018)
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
APPLICATION NOTES:
- The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
- 846098-5001S
