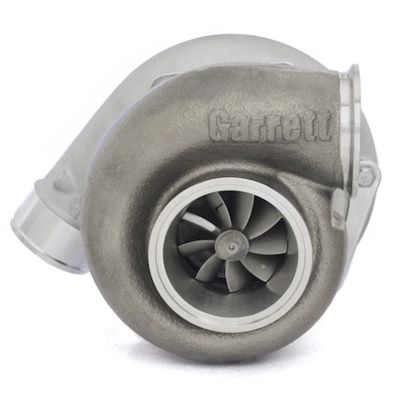

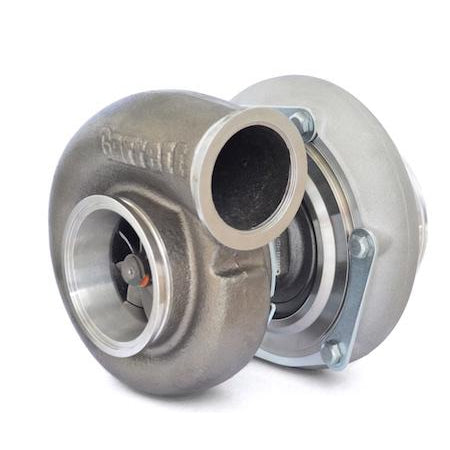

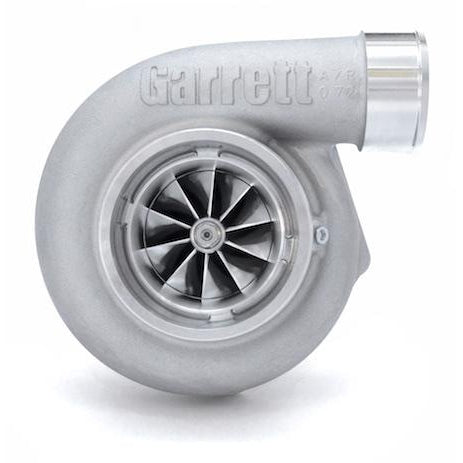

ATP Turbo Garrett GTX3584RS (with Garrett V-Band Turbine Housing)
by ATP Turbo
$6,310.44 NZD
SKU GRT-TBO-586-83AR
Buy now pay later,no extra cost!
Payments from $631.04 with
Enjoy now. Pay Later. Interest free. Learn More
The Garrett GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!
PRODUCT FEATURES:
- Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
- Ultra high flow "RS" blade profile turbine wheel
- Dual ball bearing CHRA rotating assembly
- Compact package capable of 1,000HP
- Compressor Wheel Inducer: 67mm
- Compressor Wheel Exducer: 84mm
- Compressor Wheel Trim: 64
- Compressor Housing: T04S Frame with a 4" inlet and 2.5" outlet w/ Anti-Surge
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
- Turbine Housing: Various A/R Stainless Steel V-Band Inlet & V-Band Outlet
- Includes turbine Housing Inlet clamp and outlet clamp (manifold and down-pipe flanges sold separately)
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-191
- V-Band Inlet Clamp: Product Code:CLC-CLA-047
- GT 3" V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
- V-Band Outlet Clamp: Product Code:CLC-CLA-048
NOTE: Alternate coolant and oil fittings and flanges are available.
APPLICATION NOTES:
- The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
- 846098-5001S
- 856804-5002S
