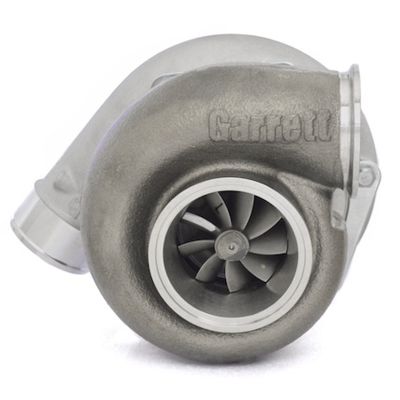

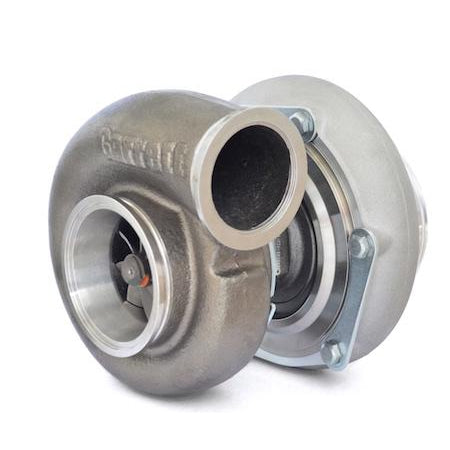

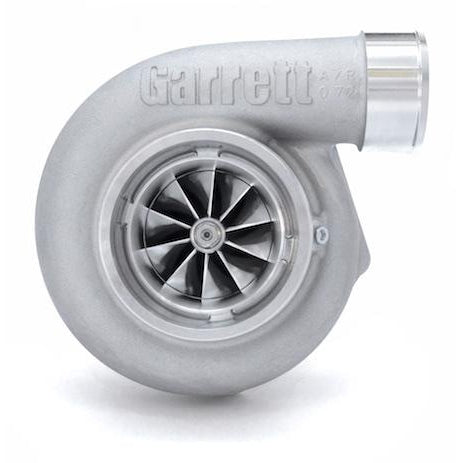

ATP Turbo Garrett GTX3584RS Turbo w/ other Turbine Options - Slip Hose Compressor Outlet
by ATP Turbo
$6,543.95 NZD
SKU GRT-TBO-566-NTH-4AS
Buy now pay later,no extra cost!
Payments from $654.39 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GTX3584RS dual ball bearing turbocharger with hose bead compressor outlet housing.
The Garrett GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!
** Hose bead compressor housing outlet version **
PRODUCT FEATURES:
- Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
- Ultra high flow "RS" blade profile turbine wheel
- Dual ball bearing CHRA rotating assembly
- Compact package capable of 1,000HP
- Compressor Wheel Inducer: 67mm
- Compressor Wheel Exducer: 84mm
- Compressor Wheel Trim: 64
- Compressor Housing A/R: 0.72
- Compressor Housing Inlet: 4 inch diameter
- Compressor Housing Outlet: 2.5 inch diameter
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
NOTE: Alternate coolant and oil fittings and flanges are available.
TURBINE HOUSING OPTIONS:
- Garrett Stainless Steel V-Band Inlet/Outlet .83 A/R Product Code: ATP-HSG-340
- Garrett Stainless Steel V-Band Inlet/Outlet 1.01 A/R Product Code: ATP-HSG-341
- Garrett Stainless Steel V-Band Inlet/Outlet 1.21 A/R Product Code: ATP-HSG-343
APPLICATION NOTES:
- The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
- 846098-5001S
- 856804-5001S
- 856804-5002S
- 856804-5003S
