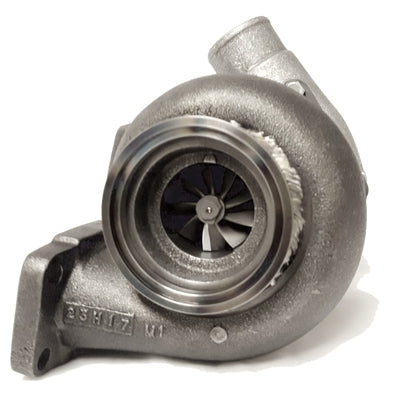

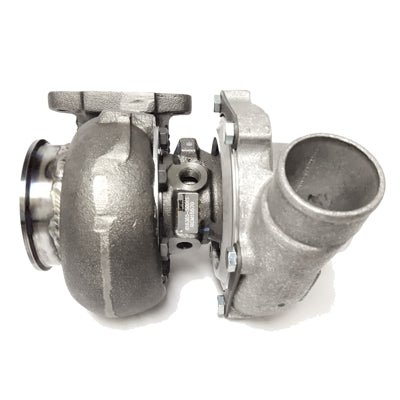

ATP Turbo Garrett GTX2860R dual ball bearing turbo w/ .82 A/R T3 DIVIDED TURBINE HOUSING

$3,695.92 NZD
SKU GRT-TBO-G09
Buy now pay later,no extra cost!

Payments from $369.59 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Garrett GTX2860R dual ball bearing turbocharger with .82 A/R T3 divided turbine housing. Supports up to 400HP potential flow.

Product Specifications:

  • Compressor Wheel Inducer: 45.7mm
  • Compressor Wheel Exducer: 60mm
  • Compressor Wheel Trim: 49
  • Turbine Wheel Inducer: 53.9mm
  • Turbine Wheel Trim: 76
Coolant (water) & Oil Fittings, Flanges, and Components Solutions:
  • Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
  • Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
  • Oil drain flange: Product Code: ATP-FLA-010
  • Oil drain gasket: Product Code: GRT-GSK-008
  • T3 Divided Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-068
  • T3 Divided Inlet Gasket: Product Code:ATP-GSK-015
  • V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-209
  • V-Band Outlet Clamp: Product Code:CLC-CLA-047
NOTE: Alternate coolant and oil fittings and flanges are available.

Compressor and Turbine Maps:



Garrett Part Numbers:

  • 816364-5001S
  • 836040-5002S
