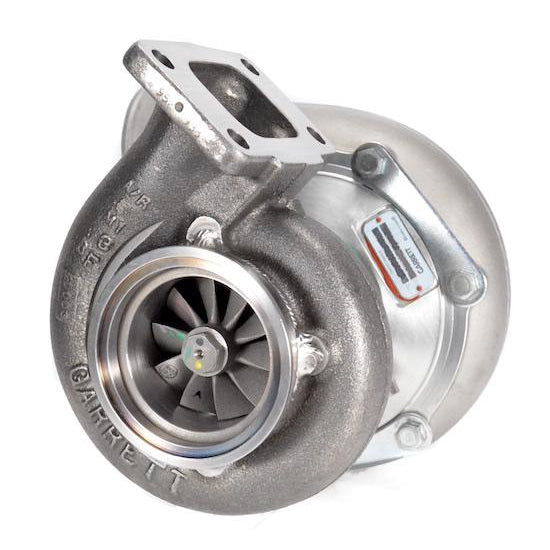

ATP Turbo Garrett GTW3884R (aka GTW6765R) - 67mm BB Turbo, .82 A/R, T3 Inlet, Welded GT 3" V-Band Outlet
by ATP Turbo
$4,239.02 NZD
SKU GRT-TBO-913
Buy now pay later,no extra cost!
Payments from $423.90 with
Enjoy now. Pay Later. Interest free. Learn More
GTW3884R (aka GTW6765R) 67mm ball bearing turbo. 950HP potential flow. Includes .82 A/R, T3 Undivided Inlet, Welded GT 3" V-Band Outlet Turbine Housing.
GTW Series - Garrett's Performance solution to the popular 6766 size turbo. Great performance at a competitive price!
PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 67.3mm
* Compressor Wheel Exducer: 84.4mm
* Compressor Wheel Trim: 64
* Turbine Wheel Inducer: 74.2mm
* Turbine Wheel Exducer: 64.6mm
* Turbine Wheel Trim: 76
* Compressor Housing is T04S Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.
APPLICATION NOTES:
* NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
* External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
* GTW Series Ball Bearing CHRA DOES NOT use the same oil return fittings as the small frame Garrett GT or GTX Series turbochargers.
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS:
Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
Oil drain flange: Product Code: ATP-FLA-042
Oil drain gasket: Product Code: ATP-GSK-027
8mm x 1.25 (thread pitch) Bolts: Product Code: MIA-FST-034
T3 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-038
T3 Inlet Gasket: Product Code:GRT-GSK-005
GT 3" V-Band Flange (for Downpipe): Product Code:ATP-FLS-246
3" V-Band Clamp: Product Code:CLC-CLA-048
APPLICABLE GARRETT PART NUMBERS:
757197-0013S
841691-5005S
GTW Series - Garrett's Performance solution to the popular 6766 size turbo. Great performance at a competitive price!
PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 67.3mm
* Compressor Wheel Exducer: 84.4mm
* Compressor Wheel Trim: 64
* Turbine Wheel Inducer: 74.2mm
* Turbine Wheel Exducer: 64.6mm
* Turbine Wheel Trim: 76
* Compressor Housing is T04S Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.
APPLICATION NOTES:
* NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
* External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
* GTW Series Ball Bearing CHRA DOES NOT use the same oil return fittings as the small frame Garrett GT or GTX Series turbochargers.
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS:
TURBINE HOUSING COMPONENTS:
APPLICABLE GARRETT PART NUMBERS:
