STM Tuned E85 Safe FPR Kit for 1G DSM

$698.49 NZD
SKU STM-1GDSM-FPRK-51502-1
Buy now pay later,no extra cost!

Payments from $69.84 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

"Allow 4-6 Weeks For Parts Manufacture/Order Processing Before Shipping"

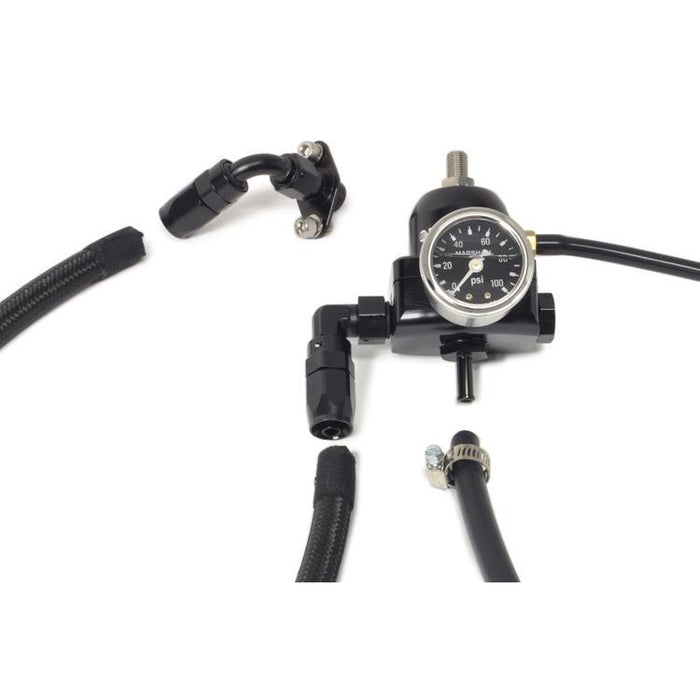

The STM FPR Kits for the 1G DSM include all fittings, hardware and line to go from your fuel rail to factory-style or -6AN outlet regulator and back to the return line. The STM FPR Kit includes a -6AN Fuelab Regulator (Standard or Mini) in your choice of 6 colors and is 100% E85 safe.

Features:

  • Includes every part needed to bolt-in and work
  • Soft nylon braided hose will not scratch like stainless
  • Silicone-filled fuel pressure gauge
  • Fuelab regulator in your choice of 6 colors
  • 100% E85 safe

Vehicle Fitment:

  • 1990-1994 1G DSM (Eclipse GST/GSX, Talon TSi & Laser Turbo)
  • 1G Kit includes long fuel rail fitting (FRF-6L)

Options:

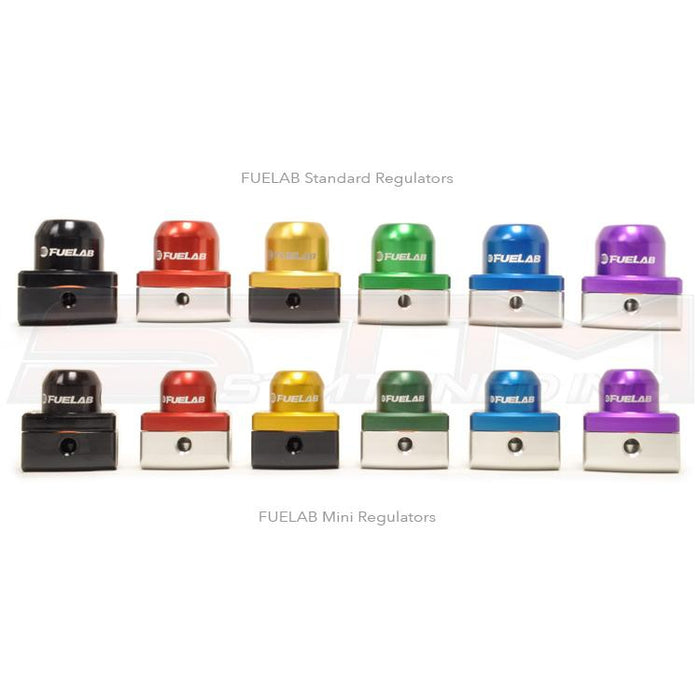

  • Mini or Standard Regulator
  • Black, Red, Blue,Purple, Green or Gold

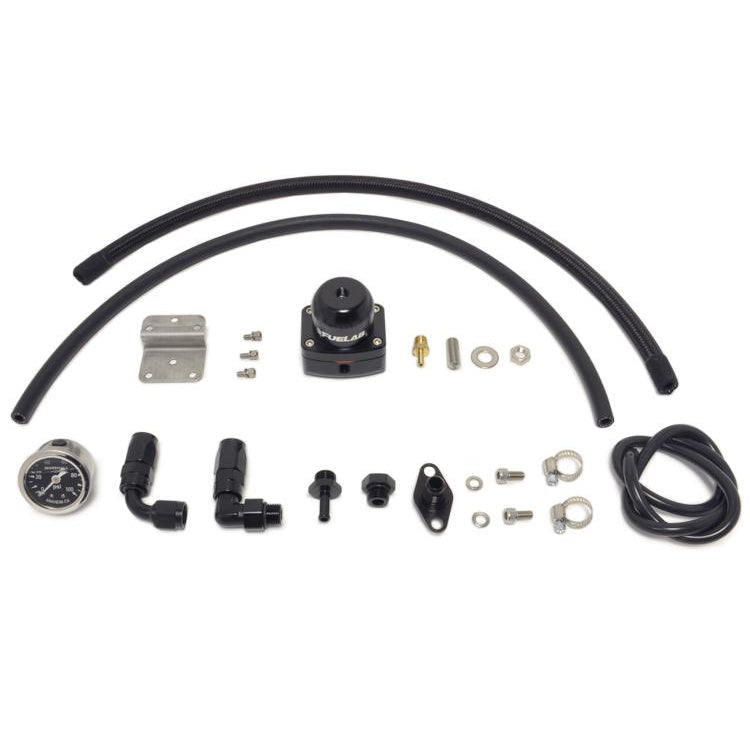

Includes: Install:
(1) Fuelab -6AN Fuel Pressure Regulator (51502) Generally mounted on firewall
(1) Vibrant -6AN ORB 90° Hose End Fitting (24902) To Regulator
(1) Vibrant -6AN 90° Hose End Fitting (21906) To fuel rail fitting
(1) STM -6AN Barb Fitting (STM-6AN-7MM) To bottom port of regulator
(1) Russell -6AN Port Plug (660273) To right side of regulator
(2) -4AN Hose Clamps For push-on hose
(1) STM 1G Long Fuel Rail Fitting with SS Hardware To fuel rail
(1) Marshall Liquid-Filled Fuel Pressure Gauge To front of regulator
(1) Vibrant 2-Foot Length -4AN Push-On Hose (16324) From bottom of FPR to factory hard line
(1) Vibrant 2-Foot Length -6AN Black Braided Hose (11956)        Between both 90° fittings
(1) 2 Foot Section 3mm Silicone Vacuum Line        FPR to boost source



Install Notes:

  • The blue O-rings and plug are not used.
  • Thread Tape should be used on the gauge and the brass fitting.
  • Do NOT use thread tape on AN fittings!
  • We recommend: the PFTE Tape for the brass fitting or plug.
