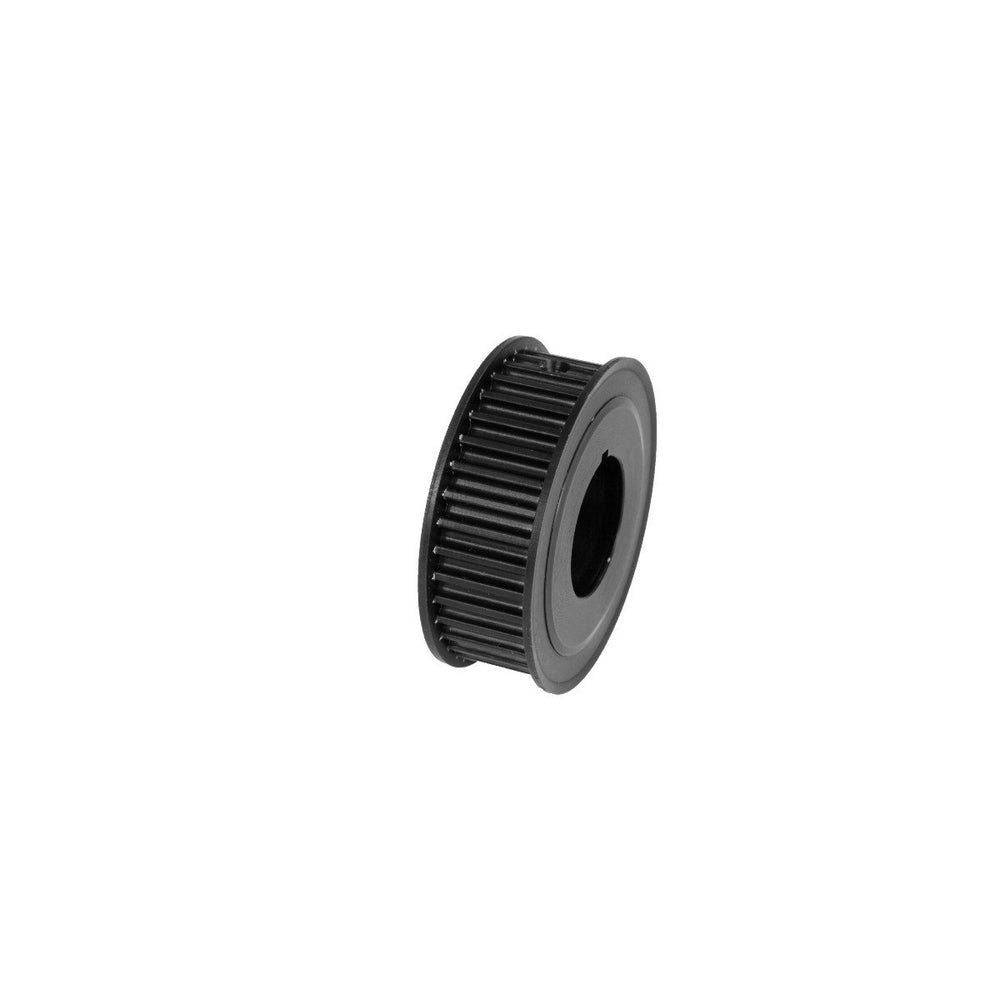

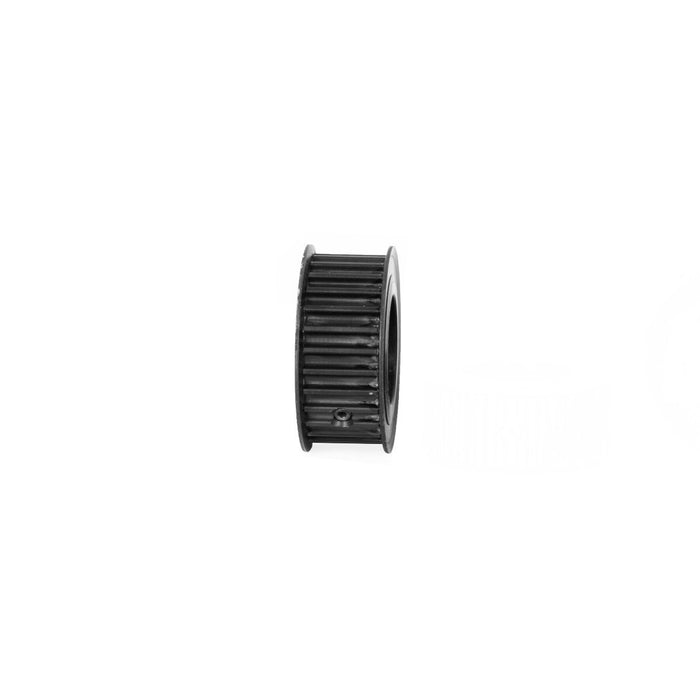

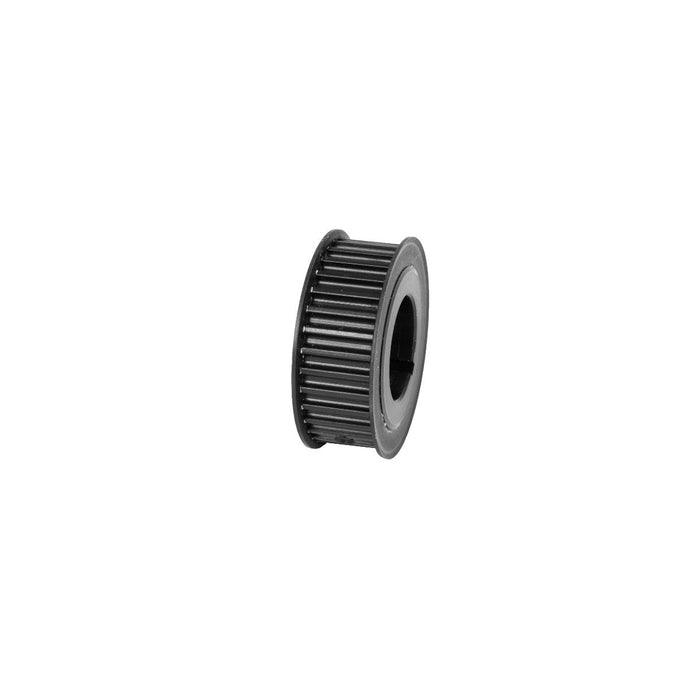

Aeromotive Pulley, HTD, 5M, 1-inch Bore, 28/32/36/40 Tooth
by Aeromotive
$144.07 NZD
SKU AER21112
Buy now pay later,no extra cost!
Payments from $14.40 with
Enjoy now. Pay Later. Interest free. Learn More
Additional Information:
| Weight | 1.00 lbs |
| Dimensions | 7.13 × 5.00 × 2.25 in |
| Tooth Size | 28 tooth – 50%, 32 tooth – 57%, 36 tooth – 64%, 40 tooth – 71%, 56-tooth |
- Designed for 5M pitch, 15mm wide HTD drive belt
- Drive pulley featuring 1/8” keyed 1” bore for any 1” drive mandrel including Aeromotive P/N 21119 and 21120 Drive Mandrels.
- Rated Mechanical Pump flow is at 4,000 Pump RPM.
- Maximum pump speed should not exceed 5000 RPM. A safe target pump speed is 4,500 RPM.
- To calculate: Pump RPM = Engine RPM x the following %.
- 28 tooth – 50% with 56 tooth driven pulley P/N 21112
- 32 tooth – 57% with 56 tooth driven pulley P/N 21113
- 36 tooth – 64% with 56 tooth driven pulley P/N 21114
- 40 tooth – 71% with 56 tooth driven pulley P/N 21115
