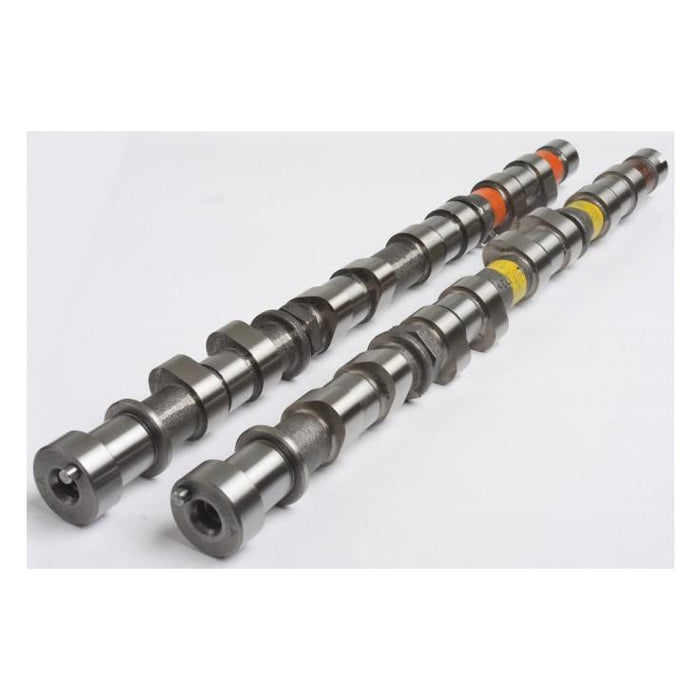

Kelford Cams 105-A Chevrolet Small Block H50
Buy now pay later,no extra cost!
Payments from $74.52 with

Note: Please check availability with us before ordering.
206/206 Degrees duration @ 0.050" cam lift, .401"/.401" lift.
Additional Information:
252 degree single pattern cam for strong torque in heavy vehicles or towing, retaining good economy.
Camshaft Information:
| Engine Make: | Engine Model: | Part Number: | |||||
| CHEVROLET | 262-400 Small Block V8 | 105-A | |||||
| Valve Clearance: | Intake: | Set | at the | ||||
| Exhaust: | Set | at the | |||||
| Cam Lift: | Intake: | 0.267" | Exhaust: | 0.267" | |||
| Rocker Ratio: | Intake: | 1.5 | Exhaust: | 1.5 | |||
| Nett Valve Lift: | Intake: | 0.401" | Exhaust: | 0.401" | |||
| Advertised Duration @ | 0.006" | Intake: | 252 | Exhaust: | 252 | ||
| Duration @ | .050" CAM LIFT | Intake: | 206 | Exhaust: | 206 | ||
| Timing @ | .050" CAM LIFT | IVO: | 5 ATDC | EVO: | 37 BBDC | ||
| IVC: | 31 ABDC | EVC: | 11 BTDC | ||||
| Suggested Centre Lines: | Intake: | 108 | Exhaust: | 114 | |||
| CAM | Lift @ TDC | Intake: | 0.036" | Exhaust: | 0.022" | ||
