BorgWarner Super Core S500SX SX 91mm (120/110)

$6,578.91 NZD
SKU 179190
Buy now pay later,no extra cost!

Payments from $657.89 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

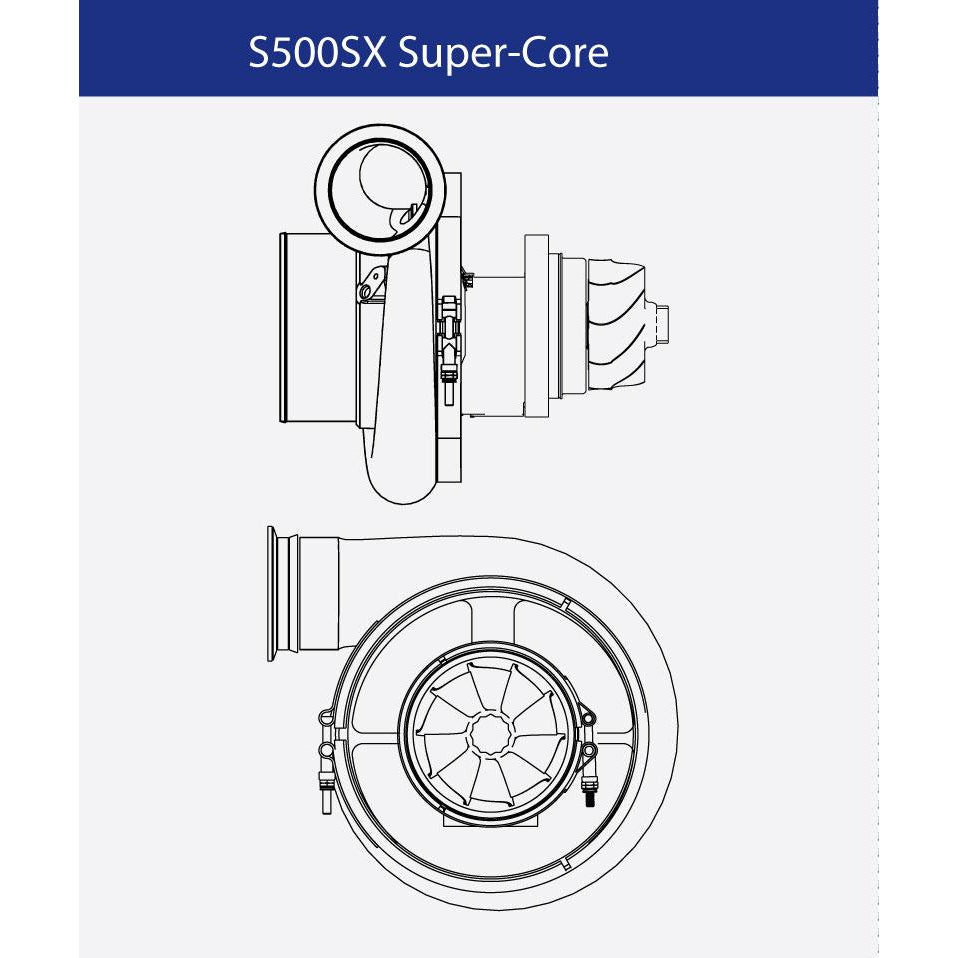

BorgWarner S500SX Super Core - 90.67mm Inducer - 99.08mm Turbine Wheel - 179190

BorgWarner S500SX Super Core

Part Number: 179190
90.67mm Inducer – 99.08mm Turbine Wheel

BorgWarner S500SX Super Core Features:

  • Twin hydrodynamic journal bearings
  • Extended Tip Technology Compressor Wheel
  • Available Twin Scroll and Open Flow Turbine Housing
  • Adjustable compressor and turbine housing orientation
  • Compressor cover recirculation grooves
  • Optimized compressor inlet geometry
  • Dual machined compressor cover discharge connection (v-band or hose bead)
  • Premachined speed sensor mounting boss

Super Core Specifications

Comp Wheel Inducer
90.67mm

Turbine Wheel O.D.
109.73m

Turbine Wheel Exducer
99.08mm

Available Turbine Housings

Part # A/R Inlet Configuration Outlet Configuration
179159 0.85 Volute, Open Flow T6 Inlet Half Marmon
179160 1
179161 1.15
178498 1.3
179162 1.45
179478 1.15 Volute, Twin Flow T6 Inlet Half Marmon
179192 1.45
179193 1.6



BorgWarner 179190 Compressor Map

BorgWarner S500SX Super Core - 90.67mm Inducer - 99.08mm Turbine Wheel - 179190

Additional Information:

Weight  41 lbs
Dimensions 18 × 18 × 18 in
Brand BorgWarner
