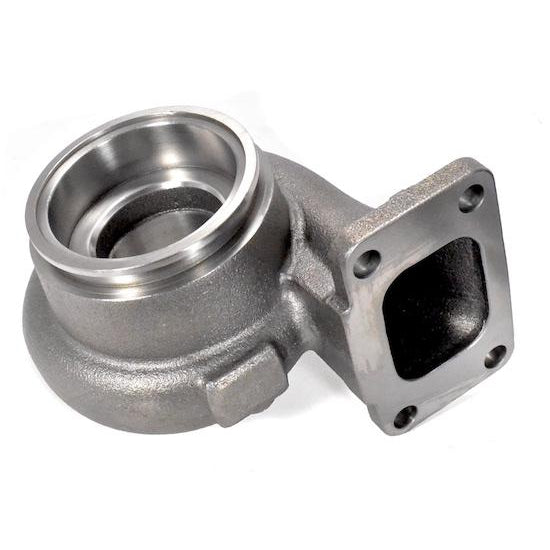

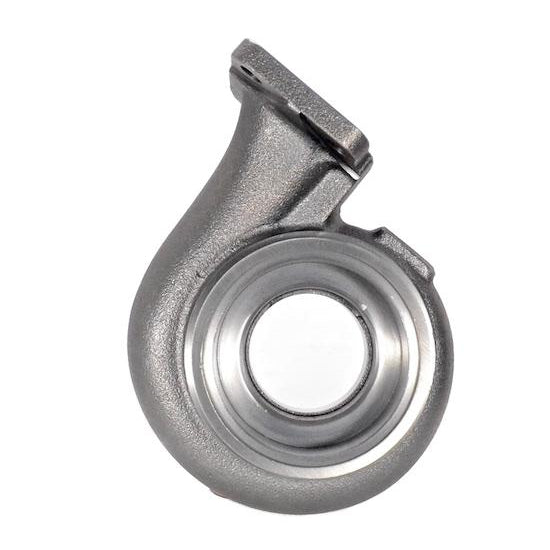

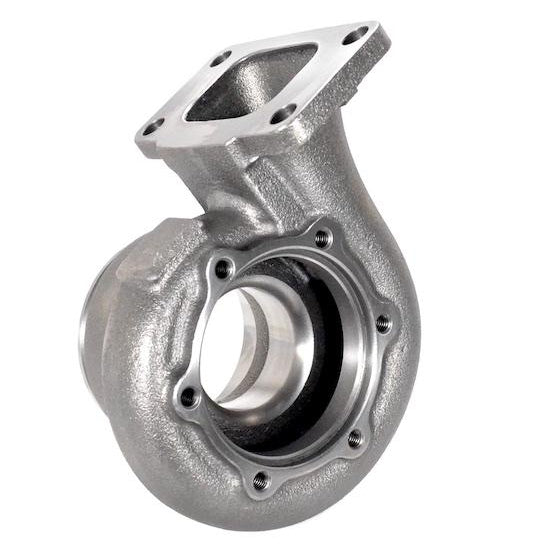

ATP Turbo T3 .48 A/R Turbine Housing GT30 / GTX30 3" GT V-Band Exit w/81mm Lip
by ATP Turbo
Save 10%
Original Price
$940.13 NZD
Current Price
$846.12 NZD
SKU ATP-HSG-380
Buy now pay later,no extra cost!
Payments from $84.61 with
Enjoy now. Pay Later. Interest free. Learn More
T3 .48 A/R Turbine Housing GT30 / GTX30 with 3" GT V-Band Exit w/81mm Lip at the downpipe flange
Fits the 60mm 84 trim turbine wheel found on GT3071R, GT3076R and all GTX3071R/GTX3076R turbos (both Gen1 and Gen2).
Turbine housing A/R is Garrett T3 .48 A/R for ultra quick spool. If you want the GT30 frame turbo to come on the quickest and make the most of amount of low to medium range torque as possible, especially on engines that don’t have high redline RPM’s.
This housing has the 3” GT V-Band downpipe flange which has the 90mm OD ring and 81mm centering groove so please use the GT V-band flange with the 81mm lip and matching clamp.
INSTALLATION COMPONENTS:
Fits the 60mm 84 trim turbine wheel found on GT3071R, GT3076R and all GTX3071R/GTX3076R turbos (both Gen1 and Gen2).
Turbine housing A/R is Garrett T3 .48 A/R for ultra quick spool. If you want the GT30 frame turbo to come on the quickest and make the most of amount of low to medium range torque as possible, especially on engines that don’t have high redline RPM’s.
This housing has the 3” GT V-Band downpipe flange which has the 90mm OD ring and 81mm centering groove so please use the GT V-band flange with the 81mm lip and matching clamp.
INSTALLATION COMPONENTS:
- T3 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-038
- T3 Inlet Gasket: Product Code:GRT-GSK-005
- GT 3" V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
- V-Band Clamp: Product Code:CLC-CLA-048
- Turbine Housing to CHRA Mount Kit: Product Code:ATP-FST-039
