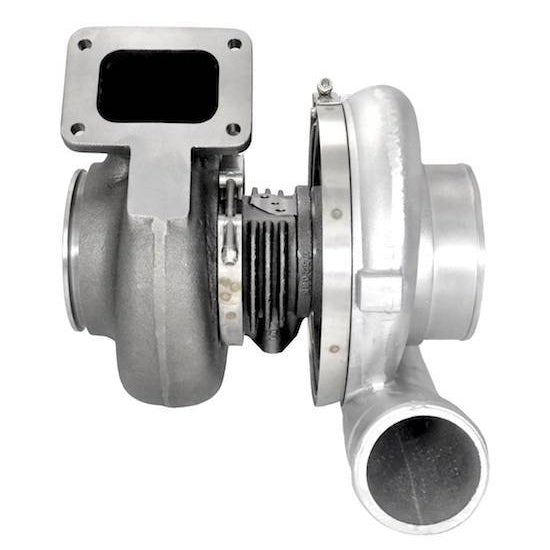

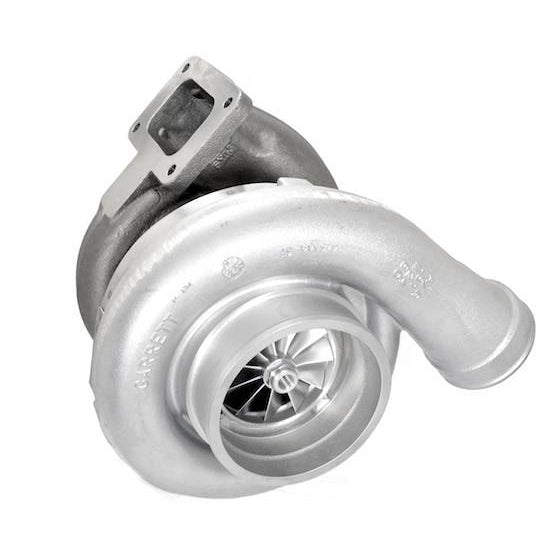

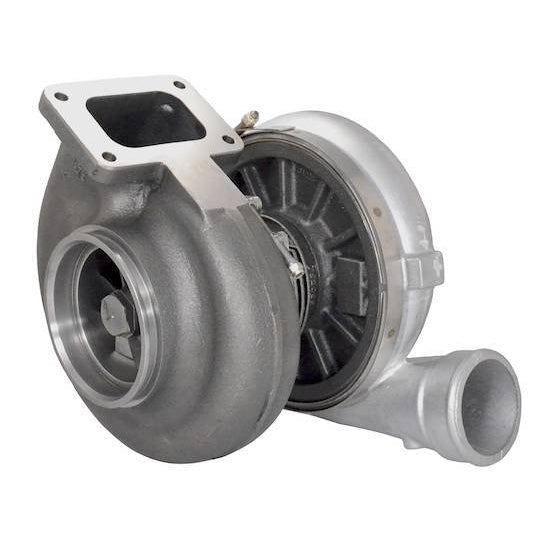

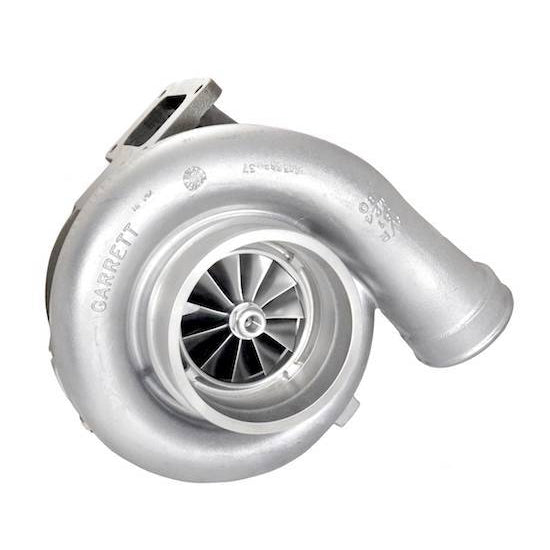

ATP Turbo Garrett GTX5533R - 94mm (aka GTX55-94) w/ 1.00 A/R T6 V-Band Turbine Hsg.
by ATP Turbo
Save 10%
Original Price
$7,989.39 NZD
Current Price
$7,190.45 NZD
SKU GRT-TBO-C97
Buy now pay later,no extra cost!
Payments from $719.04 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GTX5533R (94mm) also known as the "GTX55-94", dual ball bearing turbocharger with a 1.00 A/R T6 Inlet and V-Band Outlet Turbine Housing. The Ultra High Flow Garrett GTX 94mm Turbo which supports over 1800HP+ and designed for race classes limited to a 94mm compressor wheel inducer.
PRODUCT FEATURES:
Ultra high flow Garrett GTX 94mm forged billet aluminum compressor wheel
Designed for race classes limited to a 94mm compressor wheel inducer
Direct Drop-in upgrade for an existing Garrett GT55 turbo setup
Oil cooled bearing housing (no water ports)
Dual ball bearing CHRA rotating assembly
PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 93.8mm
Compressor Wheel Exducer: 133.3mm
Compressor Wheel Trim: 50
Compressor Housing: 0.81 A/R, 5.5" Inlet, and 3.5" Hose Connection Compressor Outlet
Turbine Wheel Inducer: 112mm
Turbine Wheel Exducer: 102mm
Turbine Wheel Trim: 84
Turbine Housing: 1.00 A/R, T6 Inlet and 5.0" V-Band Outlet
OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
Oil feed flange: Product Code: ATP-FLA-008
Oil feed gasket: Product Code: GRT-GSK-011
Oil drain flange: Product Code: ATP-FLA-035
Oil drain gasket: Product Code: GRT-GSK-035
8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
T6 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-027
T6 Gasket: Product Code:ATP-GSK-017
V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-092
V-Band Outlet Clamp: Product Code:CLC-CLA-022
NOTE: Alternate oil fittings and flanges are available.
APPLICABLE GARRETT PART NUMBERS:812704-5001S
