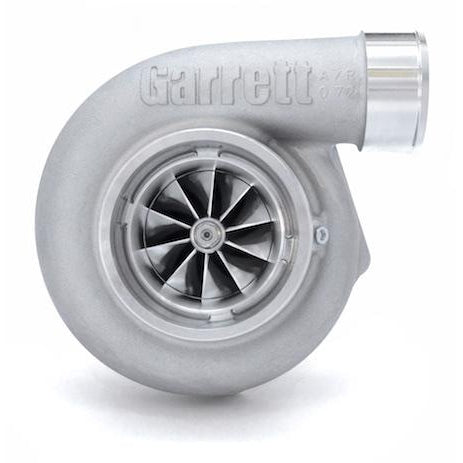

ATP Turbo Garrett GTX3584RS (with TiAL Compatible Turbine Housing)
ATP Turbo Garrett GTX3584RS (with TiAL Compatible Turbine Housing)

ATP Turbo Garrett GTX3584RS (with TiAL Compatible Turbine Housing)

by ATP Turbo
Save 10%
$5,971.90 NZD
$5,374.71 NZD
SKU GRT-TBO-587-82AR
Buy now pay later,no extra cost!

Payments from $537.47 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist
Garrett GTX3584RS dual ball bearing turbocharger, including hose bead compressor outlet housing; and TiAL compatible flanged V-Band inlet & outlet turbine housing.

The Garrett GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!

PRODUCT FEATURES:
  • Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
  • Ultra high flow "RS" blade profile turbine wheel
  • Dual ball bearing CHRA rotating assembly
  • Compact package capable of 1,000HP
PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 67mm
  • Compressor Wheel Exducer: 84mm
  • Compressor Wheel Trim: 64
  • Compressor Housing A/R: 0.72
  • Compressor Housing Inlet: 4 inch diameter
  • Compressor Housing Outlet: 2.5 inch diameter
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
TURBINE HOUSING OPTIONS:
  • TiAL compatible V-Band inlet and V-Band outlet, 0.82 A/R
  • TiAL compatible V-Band inlet and V-Band outlet, 1.03 A/R

COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:

  • Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
  • Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
  • Oil drain flange: Product Code: ATP-FLA-010
  • Oil drain gasket: Product Code: GRT-GSK-008
  • 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031

NOTE: Alternate coolant and oil fittings and flanges are available.

APPLICATION NOTES:

  • The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.

Please also note that TiAl does not currently produce a turbine housing for the GTX84RS - Therefore ATP is offering this "TiAl compatible" turbine housing option in order to make this turbo "Kit Compatible" into existing Turbo kits that utilize the same style turbine housing.

COMPRESSOR & TURBINE MAPS:

APPLICABLE GARRETT PART NUMBERS:

  • 846098-5001S
