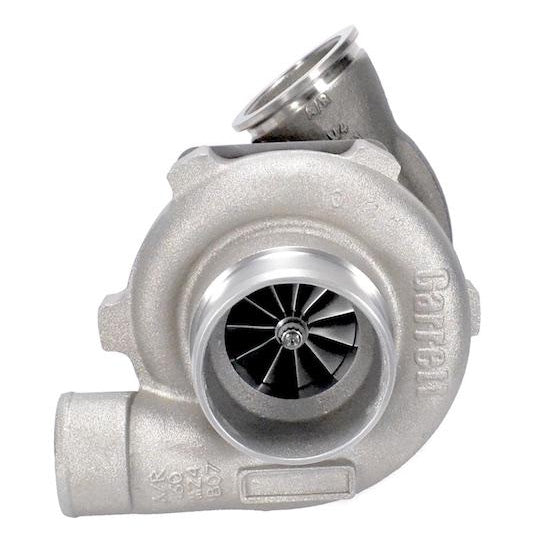

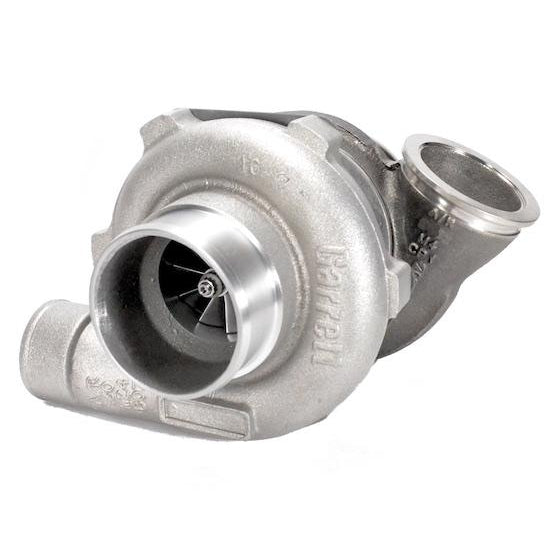

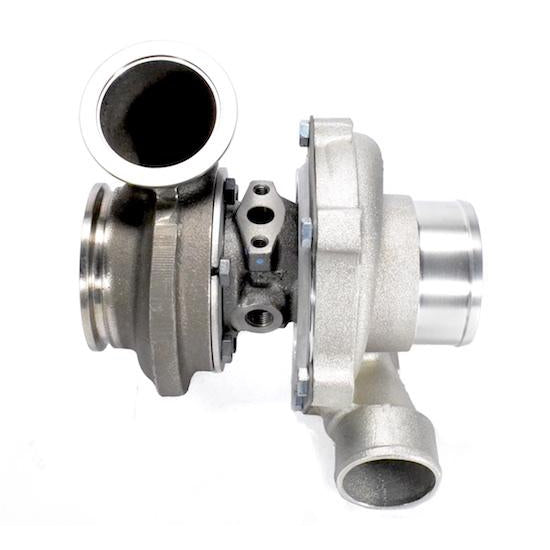

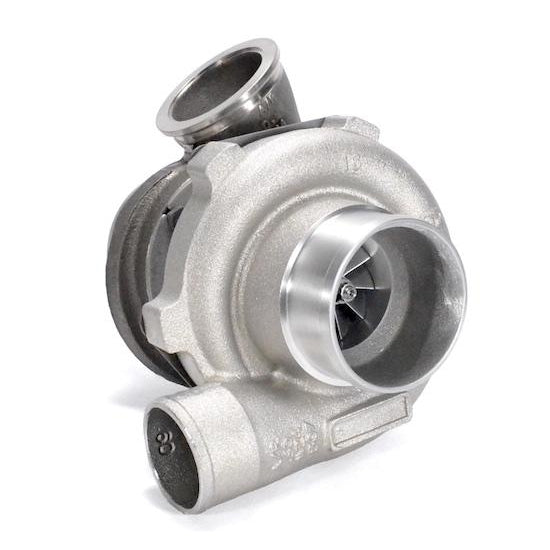

ATP Turbo Garrett GTX2976R - Compact T04B (3" Inlet) Hsg. - 1.01 AR V-Band Turbine Hsg.
by ATP Turbo
Save 10%
Original Price
$5,153.11 NZD
Current Price
$4,637.80 NZD
SKU GRT-TBO-924
Buy now pay later,no extra cost!
Payments from $463.78 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GTX2976R dual ball bearing turbo with a Compact T04B frame compressor (3" inlet and 2" outlet) housing and a 1.01 A/R V-Band Inlet and GT 3" V-Band Outlet Ni-Resist Turbine Housing. Supports up to 620HP potential flow.
PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 58.0mm
Compressor Wheel Exducer: 76.6mm
Compressor Wheel Trim: 58
Compressor Housing: Compact T04B Frame .60 A/R (3" Inlet & 2" outlet)
Turbine Wheel Inducer: 56.5mm
Turbine Wheel Exducer: 53.6mm
Turbine Wheel Trim: 90
Turbine Housing: 1.01 A/R V-Band Inlet & GT 3" V-Band Outlet
Includes Turbine Housing V-Band Inlet Clamp & Turbine Housing V-Band Outlet clamp
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
Oil drain flange: Product Code: ATP-FLA-010
Oil drain gasket: Product Code: GRT-GSK-008
8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-191
V-Band Inlet Clamp: Product Code:CLC-CLA-047
V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
V-Band Outlet Clamp: Product Code:CLC-CLA-048
NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
836013-0004
740902-0049
