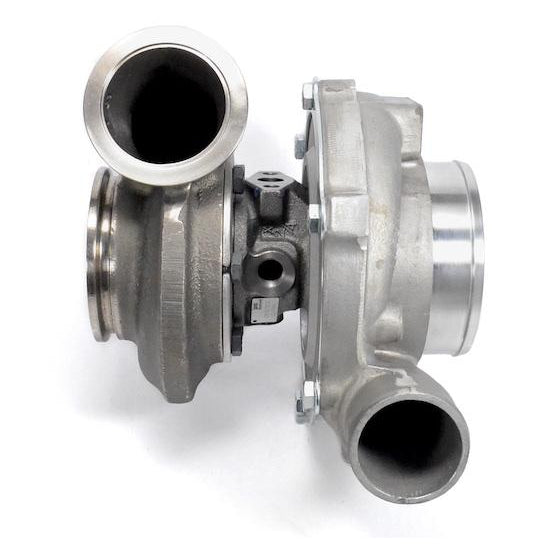

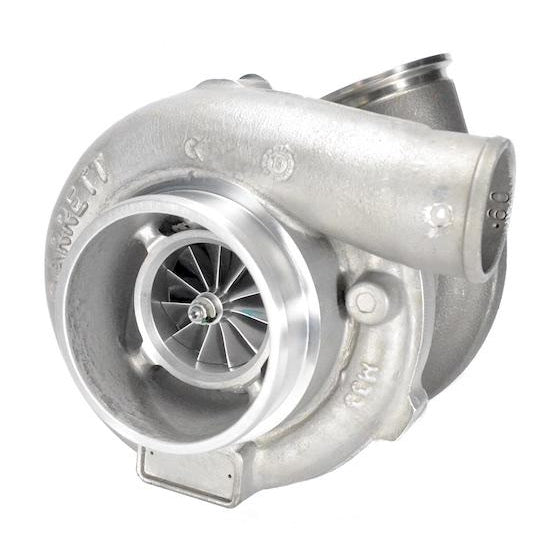

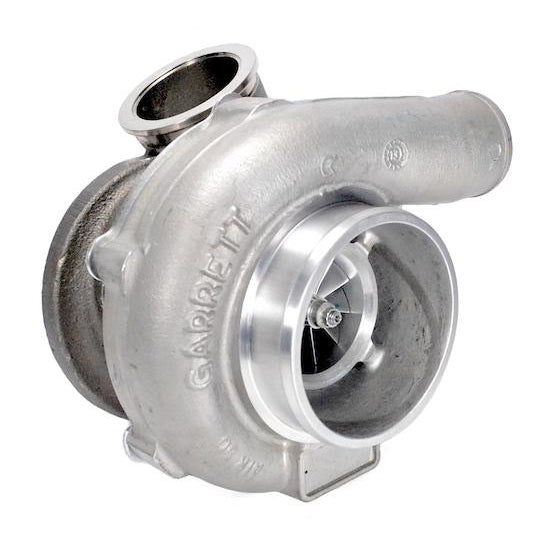

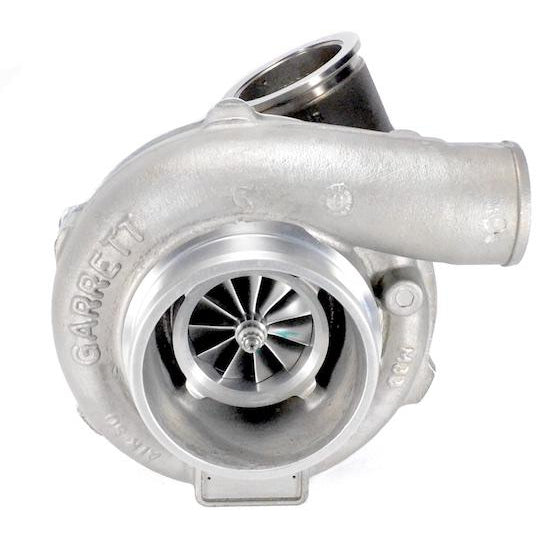

ATP Turbo Garrett GTX2971R 90T - T04E (4" Inlet) Compressor Hsg. - .61 AR V-Band Turbine Hsg.
by ATP Turbo
Save 10%
Original Price
$5,153.11 NZD
Current Price
$4,637.80 NZD
SKU GRT-TBO-F47
Buy now pay later,no extra cost!
Payments from $463.78 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GTX2971R dual ball bearing turbo with a T04E frame compressor (ported shroud 4" inlet and 2" outlet) housing and a .61 A/R V-Band Inlet and GT 3" V-Band Outlet Ni-Resist Turbine Housing. Features a "trimmed" GTX29 turbine wheel for improved response while supporting up to 560HP potential top end flow.
PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 54.1mm
Compressor Wheel Exducer: 71.4mm
Compressor Wheel Trim: 58
Compressor Housing: T04E Frame .60 A/R (ported shroud 4" Inlet & 2" outlet)
Turbine Wheel Inducer: 56.5mm
Turbine Wheel Exducer: 53.6mm
Turbine Wheel Trim: 90
Turbine Housing: .61 A/R V-Band Inlet & GT 3" V-Band Outlet

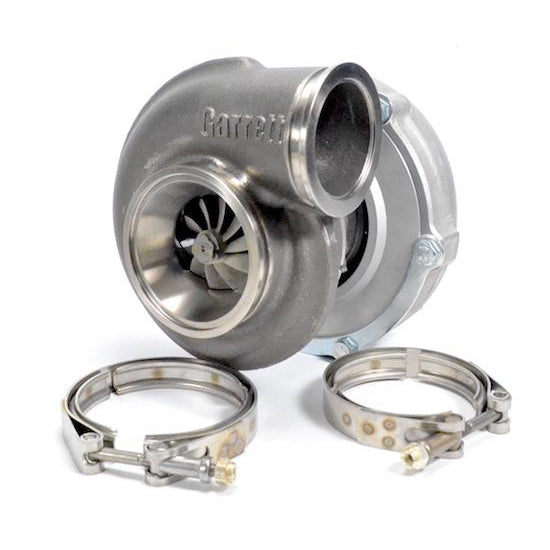

Includes Turbine Housing V-Band Inlet Clamp & Turbine Housing V-Band Outlet clamp
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
Oil drain flange: Product Code: ATP-FLA-010
Oil drain gasket: Product Code: GRT-GSK-008
8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-191
V-Band Inlet Clamp: Product Code:CLC-CLA-047
V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
V-Band Outlet Clamp: Product Code:CLC-CLA-048
NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
836041-5003S
836041-3
836013-0003
