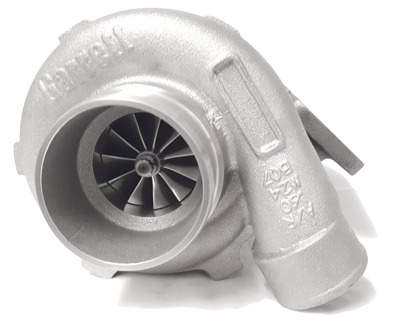

ATP Turbo Garrett GTX2871R compact T04B Frame Comp Hsg W/ T3 DIVIDED .82 A/R w/ 81mm GTVB out

Save 10%
Original Price $4,075.44 NZD
Current Price $3,667.90 NZD
SKU GRT-TBO-B26
Buy now pay later,no extra cost!

Payments from $366.79 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist





New GTX2871R dual ball bearing turbo with ultra high flow compressor and featuring Garrett 11-Blade technology. 560HP potential flow.

Includes compact T04B frame compressor housing with Divided T3 .82 A/R and 81mm GTVB out.

The GTX2871R utilizes the same turbine housing as GT2871R and all GT28 series turbochargers with a 53.9mm and 76 trim turbine wheel.

Product Specifications:
  • Compressor Wheel Inducer: 54.1mm
  • Compressor Wheel Exducer: 71.4mm
  • Compressor Wheel Trim: 58
  • Turbine Wheel Inducer: 53.9mm
  • Turbine Wheel Exducer: 47.0mm
  • Turbine Wheel Trim: 76

Compressor & Turbine Maps:

Application Notes:

  • Uses same oil and coolant fittings as the standard GT28, GT30, and GTX35 series turbochargers
  • Available as direct drop-in replacement to existing GT28 or GT30 series turbochargers without any modifications!
Applicable Garrett Part Numbers:
  • 836012-5005S
  • 836040-5005S
