ATP Turbo Garrett GTX2863R w/ .86 A/R VB25 Entry Garrett Int W/G w/14 psi actuator and 3" V-band Module
by ATP Turbo
Save 10%
Original Price
$3,828.41 NZD
Current Price
$3,445.57 NZD
SKU GRT-TBO-B66-NO
Buy now pay later,no extra cost!
Payments from $344.55 with
Enjoy now. Pay Later. Interest free. Learn More
New GTX2863R dual ball bearing turbo with ultra high flow compressor wheel and featuring Garrett 10-Blade technology. 425HP potential flow.

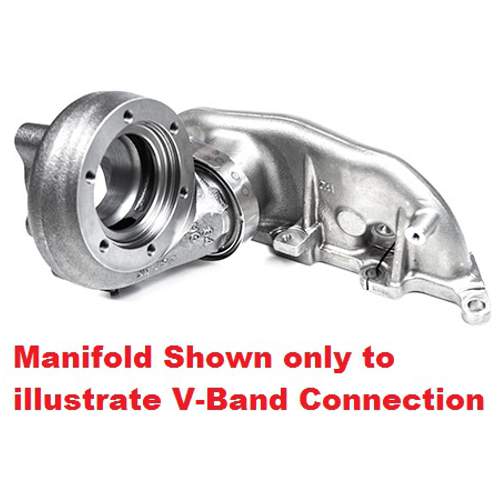

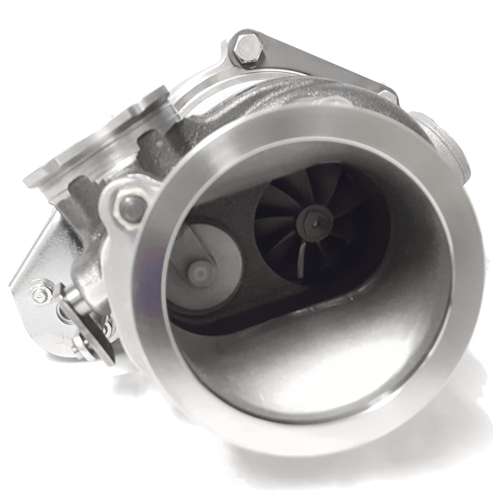

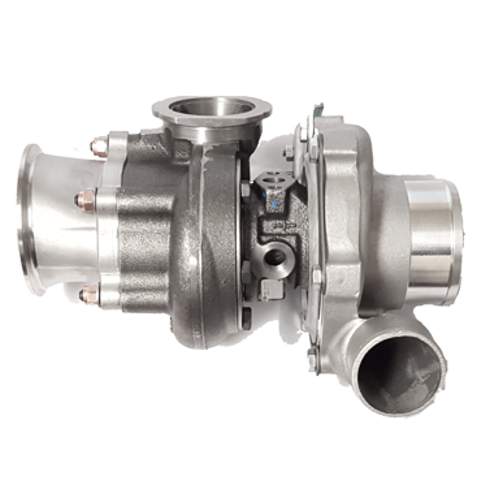

Garrett GTX2863R dual ball bearing turbocharger with .86 A/R Internal W/G VB25 Entry (TiAL Compatible) Modified Garrett Turbine Housing (T25 modified to V-Band). 3" Stainless V-Band discharge module included, along with Wastegate Actuator and Bracket, as shown.
The GTX2863R external dimensions is the same as a GT2860RS. As a result, no changes in the engine bay is required to upgrade from GT2860RS to GTX2863R!
PRODUCT SPECIFICATIONS:
- Compressor Wheel Inducer: 47.1mm
- Compressor Wheel Exducer: 63.4mm
- Compressor Wheel Trim: 56
- Turbine Wheel Inducer: 53.9mm
- Turbine Wheel Exducer: 47.0mm
- Turbine Wheel Trim: 76
- Standard compressor housing is GT28 style with 3" inlet and 2" outlet with built & machined anti-surge.
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-093
- V-Band Inlet Clamp: Product Code:CLC-CLA-025
- 3" Stainless V-Band Flange (for Downpipe): Product Code:ATP-FLS-063
- 3" Stainless V-Band Clamp (for downpipe): Product Code:CLC-CLA-013
Alternate Flange and Clamps:
COMPRESSOR MAPS:
