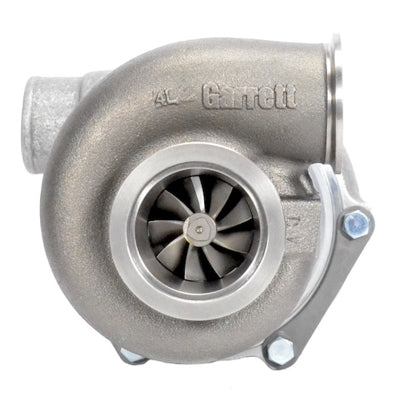

ATP Turbo Garrett GTX2863R dual ball bearing turbo with .57 A/R compact V-band Turbine Hsg
by ATP Turbo
Save 10%
Original Price
$3,695.92 NZD
Current Price
$3,326.33 NZD
SKU GRT-TBO-G06
Buy now pay later,no extra cost!
Payments from $332.63 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GTX2863R dual ball bearing turbocharger with a T04B Frame Compressor Housing (Ported Shroud 3" Inlet and 2" Outlet) and a .57 A/R V-Band Inlet and V-Band Outlet Ni-Resist Turbine Housing. Supports up to 425HP potential flow.
Product Specifications:
- Compressor Wheel Inducer: 47.1mm
- Compressor Wheel Exducer: 63.4mm
- Compressor Wheel Trim: 56
- Compressor Housing: T04B Frame .60 A/R (Ported Shroud 3" Inlet and 2" Outlet)
- Turbine Wheel Inducer: 53.9mm
- Turbine Wheel Exducer: 47.0mm
- Turbine Wheel Trim: 76
- Turbine Housing: .57 A/R V-Band Inlet and V-Band Outlet, Ni-Resist Material
- Includes V-Band Inlet Clamp and V-Band Outlet Clamp
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-208
- V-Band Inlet Clamp: Product Code:CLC-CLA-035
- V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-209
- V-Band Outlet Clamp: Product Code:CLC-CLA-047
Compressor and Turbine Maps:
Garrett Part Numbers:
- 816365-5001S
- 816365-1
- 446179-0093
