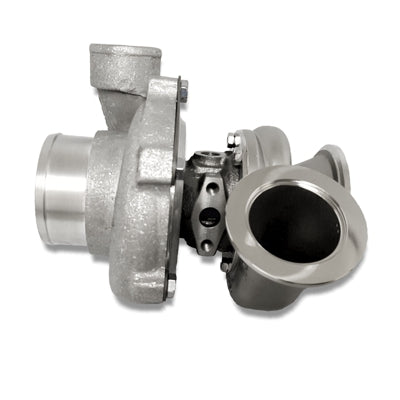

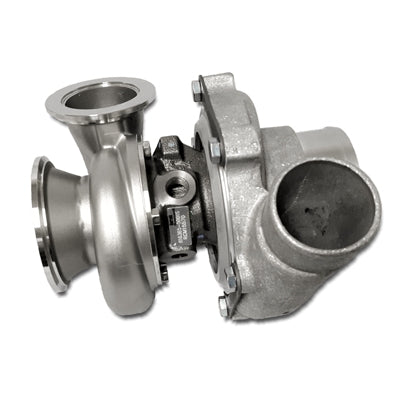

ATP Turbo Garrett GTX2860R dual ball bearing turbo w/ TIAL .52 A/R STAINLESS TURBINE HOUSING
by ATP Turbo
Save 10%
Original Price
$3,695.92 NZD
Current Price
$3,326.33 NZD
SKU GRT-TBO-G17
Buy now pay later,no extra cost!
Payments from $332.63 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GTX2860R dual ball bearing turbocharger with a TiAL .52 A/R stainless turbine housing. Supports up to 400HP potential flow.
Product Specifications:
- Compressor Wheel Inducer: 42mm
- Compressor Wheel Exducer: 60mm
- Compressor Wheel Trim: 49
- Turbine Wheel Inducer: 53.9mm
- Turbine Wheel Trim: 76
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-093
- V-Band Inlet Clamp: Product Code:CLC-CLA-025
- V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-094
- V-Band Outlet Clamp: Product Code:CLC-CLA-026
Compressor and Turbine Maps:
Garrett Part Numbers:
- 816364-5001S
- 836040-5002S
