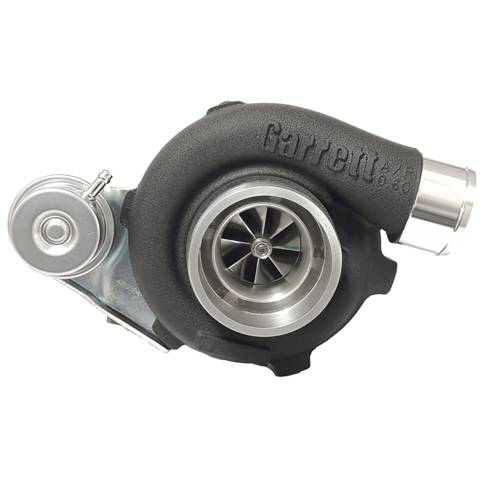

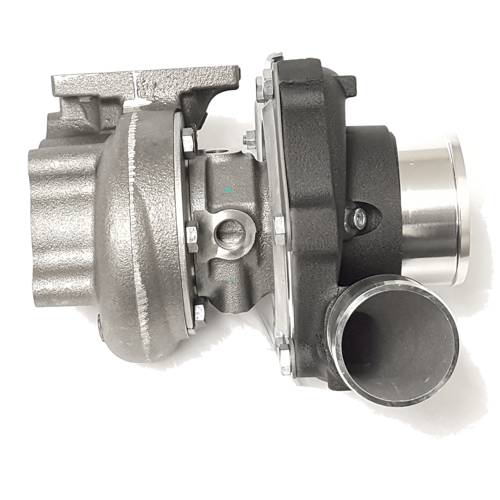

ATP Turbo Black, Gen2 GTX2867R DBB Turbo w/ 14 psi act .64 A/R T25 Flanged Garrett Int W/G TBN HSG
by ATP Turbo
$4,097.24 NZD
SKU GRT-TBO-J80
Buy now pay later,no extra cost!
Payments from $409.72 with
Enjoy now. Pay Later. Interest free. Learn More
Black, Garrett GEN2 GTX2867R dual ball bearing turbocharger with a .64 A/R T25 Inlet, internally gated, and 5 bolt outlet turbine housing, and a 14PSI wastegate actuator! Advanced GEN2 billet compressor wheel capable of 550HP!
Configured as a direct drop-in upgrade for the Garrett GT2860RS and GT2871R with a T25 inlet, internally gated, and 5 bolt outlet turbine housing and T04B frame 3" inlet and 2" outlet compressor housing.
Product Features:- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 50mm
- Compressor Wheel Exducer: 67mm
- Compressor Wheel Trim: 55
- Compressor Housing: 0.60 A/R, Anti-Surge T04B Frame (3" Inlet and 2" Outlet)
- Turbine Wheel Inducer: 54mm
- Turbine Wheel Exducer: 47mm
- Turbine Wheel Trim: 76
- Turbine Housing: 0.64 A/R, T25 Inlet, Internal Wastegate Design, and 5 Bolt Outlet
- Internal Wastegate Actuator: 14PSI
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- T25 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-037
- T25 Inlet Gasket: Product Code:GRT-GSK-004
- 5 Bolt "GT28" Outlet Flange (for Downpipe): Product Code:ATP-FLS-088
- 5 Bolt "GT28" Outlet Gasket: Product Code:ATP-GSK-016
NOTE: Alternate coolant and oil fittings and flanges are available.
Compressor & Turbine Maps:
Applicable Garrett Part Numbers:
- 849894-5002S
- 856800-5007S
