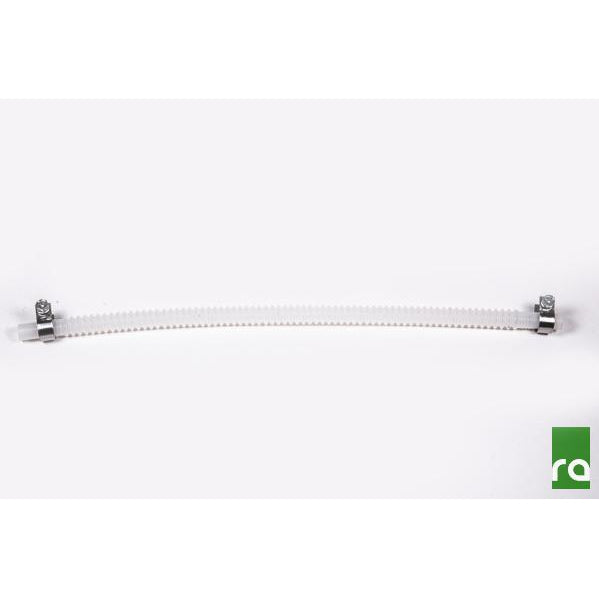

Radium Submersible PTFE Fuel Tubing
Buy now pay later,no extra cost!
Payments from $4.13 with
These fuel tubing kits are commonly used for plumbing in-tank submerged fuel pumps. The flexible convoluted tubing is manufactured from PTFE and is therefore resistant to all fuel types including alcohol blends such as E85 and suitable for EFI fuel pressure.
These tubes have been tested at Radium Engineering.
Working Pressure: 300psi
Burst Pressure: 450psi
There are 2 inner diameter sizes available including 5/16" (8mm) and 3/8" (9.5mm). When installing, use a heat gun or run hot water over the ends first to loosen the material. This allows the tubing to fit snugly over the pump's outlet. Next, torque the reuseable stainless steel SAE J1508 clamps to 13.3 in-lbs. These clamps provide a 360 degree seal with rolled edges to protect the tubing.
Use RADIUM P/N: 20-0175 and 20-0375 for the following.
-Walbro GSS341 255LPH Fuel Pump
-Walbro GSS342 255LPH Fuel Pump
-AEM 50-1000 Gas Fuel Pump
-AEM 50-1200 E85 Fuel Pump
-AEM 50-1220 E85 Fuel Pump
-Aeromotive 340R 11141 Fuel Pump
-Aeromotive 340R 11142 Fuel Pump
-Deatschwerks 9-301-1000 Fuel Pump
Use RADIUM P/N: 20-0195 and 20-0395 for the following.
-Walbro F9000262 Gas Fuel Pump
-Walbro F9000267 E85 Fuel Pump
-Walbro F9000273 Gas Fuel Pump
-Walbro F9000274 E85 Fuel Pump
-Walbro F9000285 E85 Fuel Pump
Includes
-PTFE Convoluted Tubing
-Stainless Steel EFI Tube Clamps (x2)
