Aeromotive Phantom 340 Stealth Fuel System
Buy now pay later,no extra cost!
Payments from $141.48 with
- Cut a hole in you tank.
- Measure the depth.
- Cut both you pump hanger bracket and your baffle / basket foam to length.
- insert the baffle.
- Install the retainer ring and gasket.
- Bolt your pump and hanger down.
That’s it! Now you have a fuel pump inside your factory tank capable of supporting big horsepower, EFI or Carbureted, AND it’s whisper quiet. No more welding sumps or using up trunk space with fuel cells. No more hot fuel handling issues like vapor-lock and no more fuel slosh. The Phantom system’s internal baffle / basket controls fuel slosh and keeps the fuel pump submerged in fuel, even at low fuel levels and in aggressive driving. The best part about this whole system is that it’s completely universal. This system will fit virtually any tank from 6 deep to 11 inch deep, plastic, steel, aluminum, corrugated, or smooth. One system that gives you everything you need to fuel your ride. It’s serious performance and you will never know is there! Click here to learn more about this universal in tank fuel system. Patent No. 8,783,287

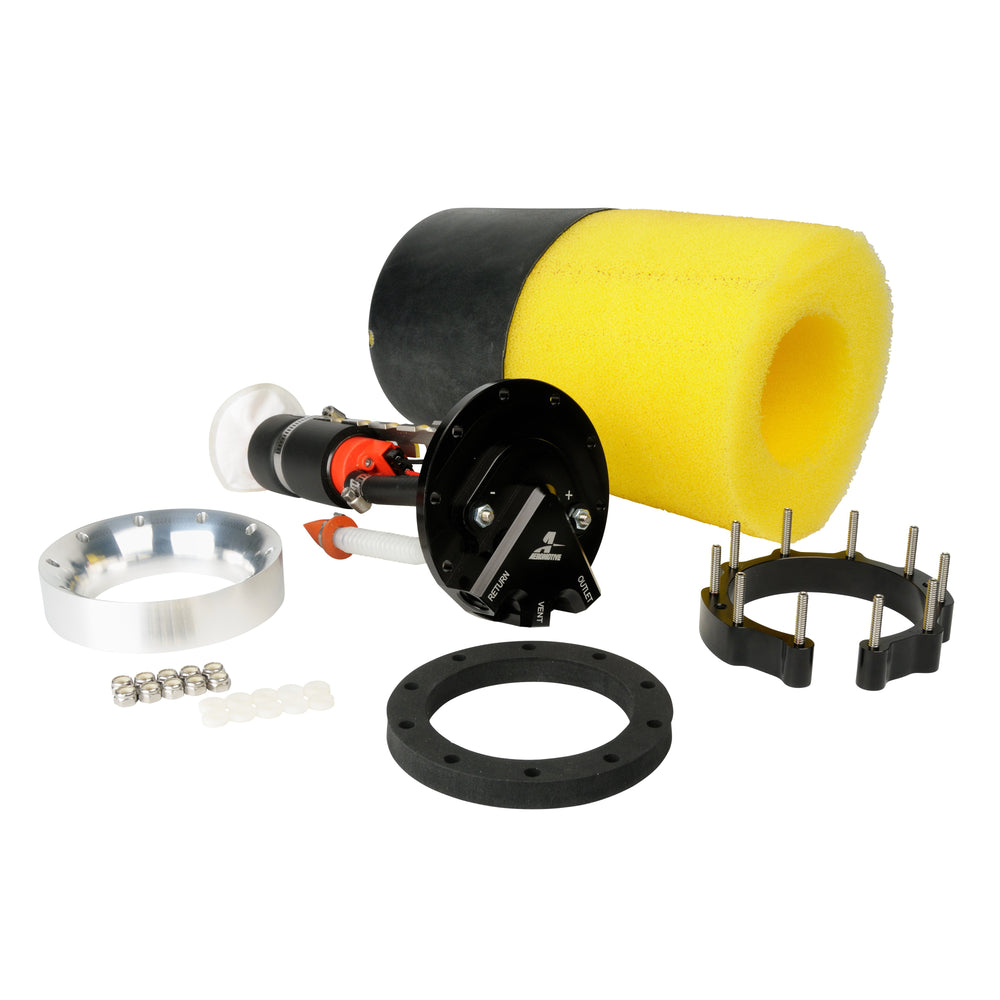

Features and Specifications:
- 340 Stealth Fuel Pump

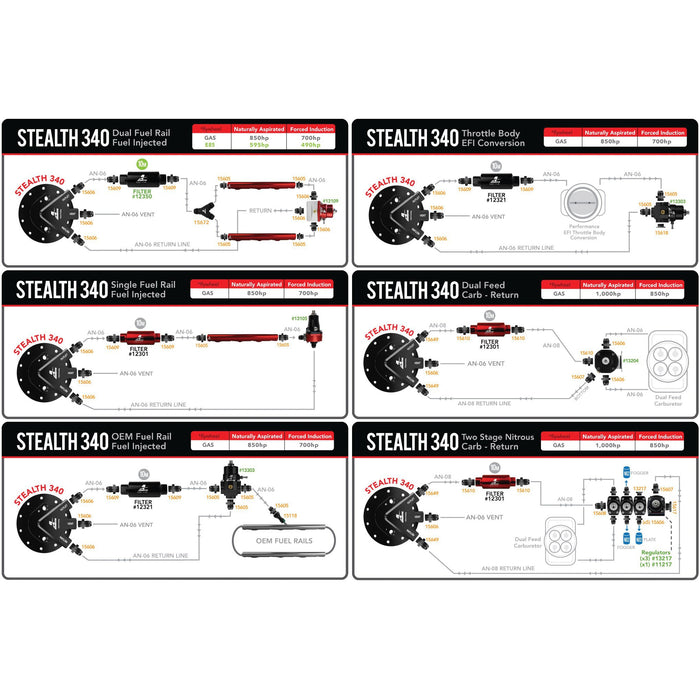

- Supports up to – 700 HP EFI – Forced Induction – 850 HP EFI – Naturally Aspirated – 850 HP Carbureted – Forced Induction – 1000 HP Carbureted – Naturally Aspirated
- Black anodized hanger assembly
- (3) ORB-06 Ports Supply, Return, Vent
- Fuel resistant baffle / basket (Includes: Foam and Bladder)
- Universal high flow pre-pump filter
- Modular design can be cut to height to fit almost any fuel tank
- EFI or Carbureted
- Turbine pump mechanism increases durability.
- Must be used with a return style system
