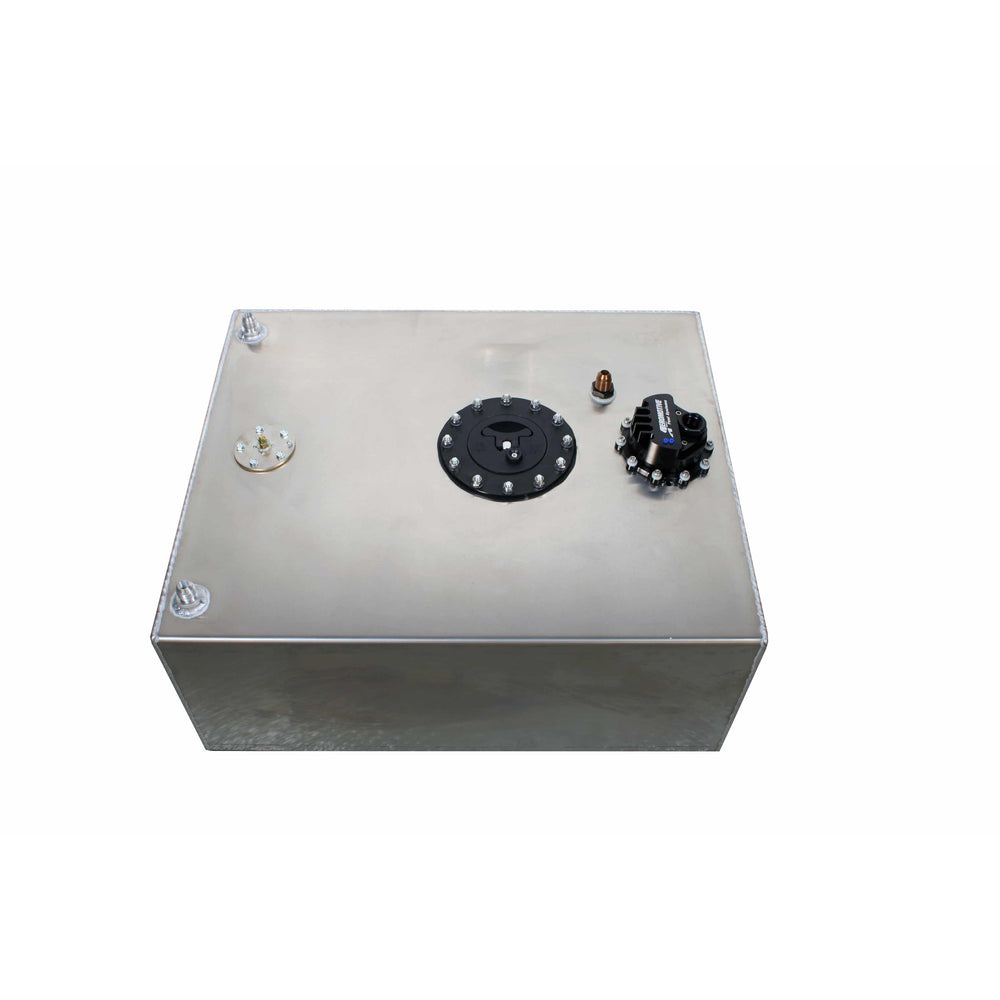

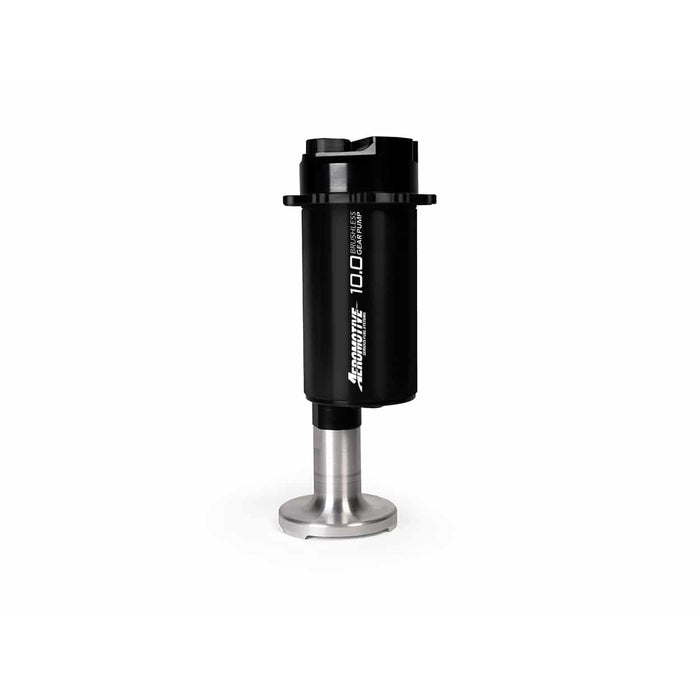

Aeromotive Fuel Cell, True Variable Speed, 20 Gal, Brushless Spur 10.0 GPM
by Aeromotive
$6,426.74 NZD
SKU AER18656
Buy now pay later,no extra cost!
Payments from $642.67 with
Enjoy now. Pay Later. Interest free. Learn More
P/N 18656: Fuel Cell, True Variable Speed, 20 Gal, Brushless Spur 10.0
Ground Shaking Performance – Advanced Technology
- Supports
Fuel injected engines:
- up to 6,900 FWHP on GAS – naturally aspirated
- up to 4,900 FWHP on GAS – forced air induction
- up to 4,830 FWHP on E85 – naturally aspirated
- up to 3,430 FWHP on E85 – forced air induction
- up to 2,415 FWHP on METHANOL – naturally aspirated
- up to 1,715 FWHP on METHANOL – forced air induction
Carbureted Engines:
- up to 7,600 FWHP on GAS – naturally aspirated
- up to 5,500 FWHP on GAS – forced air induction
- up to 5,300 FWHP on E85 – naturally aspirated
- up to 3,850 FWHP on E85 – forced air induction
- up to 2,650 FWHP on METHANOL – naturally aspirated
- up to 1,925 FWHP on METHANOL – forced air induction
- E85 Compatible, reduce max FWHP by 30%
- Lighter than the traditional external mount pumps.
- Reduced current draw at higher, EFI pressures.
- Extended service life in methanol and ethanol.
- New integral spur-gear pumping mechanism.
- 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
- Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
- ORB-12 inlet and ORB-10 outlet ports.
- Requires straight 12-VDC to 16-VDC power supply.
- Not compatible with pulse modulated systems or fuel pump speed controllers.
Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.
