Aeromotive 20g A1000 Stealth Fuel Cell

$2,336.63 NZD
SKU AER18661
Buy now pay later,no extra cost!

Payments from $233.66 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Truly universal aluminum fuel cell featuring an Aeromotive high performance fuel pump and pre-pump filter built right into the fuel cell. These Stealth Fuel Cells feature an innovative integral baffling system to maintain a column of fuel at the pickup point, eliminating fuel slosh issues making these cells perfect for any application from autocross, to road racing to drifting and off-road.

Simply strap the cell in, hook up your feed and return lines and your done. Now you have a complete “in-tank” fuel system without the need for expensive custom tanks or the hassle of welding sump boxes or modifying inadequate pick up tubes.

With either the A1000 or the Eliminator Fuel Pump, the Stealth Fuel Cells are truly universal, preforming perfectly in any application. By matching the right regulator to your application, this system will be the last fuel system you will ever need to buy.

Need help choosing the right regulator, call our tech lines at (913) 647-7300 Option 3.

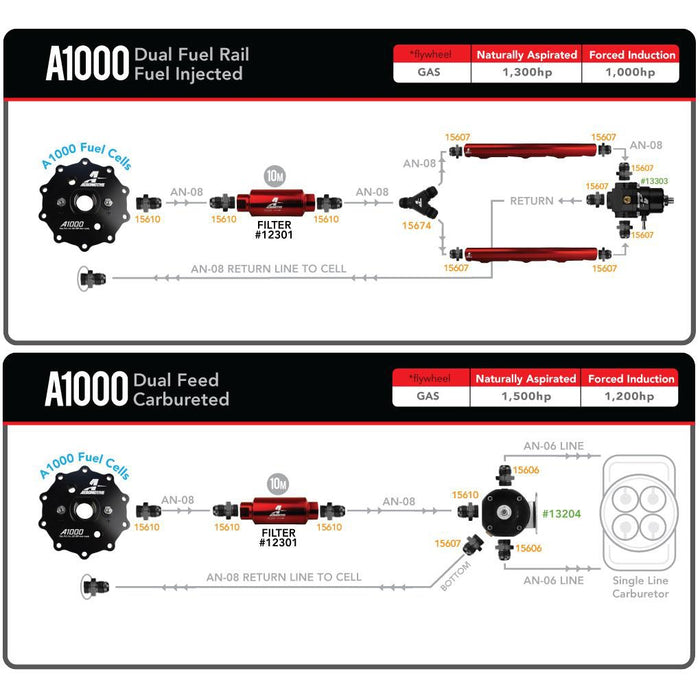

Fuel Injected Engines:
up to 1300 HP – naturally aspirated
up to 1000 HP – forced air induction

Carbureted Engines:
up to 1500 HP – naturally aspirated
up to 1200 HP – forced air induction

Features:

  • A1000 Fuel Pump (internal) – P/N 11101
  • 100 Micron Stainless Steel Fuel Filter
  • 20 Gallon Capacity
  • AN-08 Return Line Provision
  • ORB-10 Outlet Port
  • (2) AN-08 Vents with Rollover Valves
  • 0-90 Ohm Universal Sending Unit
  • Standard 12-Bolt Flush Mount Lid Assembly
  • Natural Aluminum Finish
    Dimensions: 24”L x 20”W x 10”H

Additional Information:

Weight 31 lbs
Dimensions 28 × 22 × 14 in
