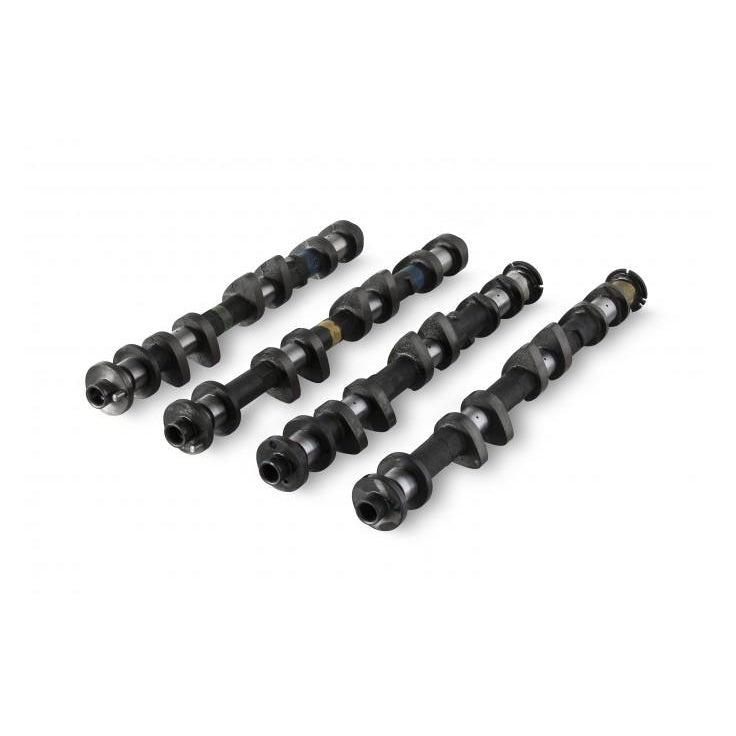

Kelford Cams 189-B Nissan VQ35 GEN 1 (350Z) CAMS
Buy now pay later,no extra cost!
Payments from $240.92 with

Note: Please check availability with us before ordering.
282/272 Degrees advertised duration. 11.50mm/11.00mm lift.
Additional Information:
Stage 2 cam to suit strong naturally aspirated engine builds. Ideal specification for fast street performance and time attack competition.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | ||||
| NISSAN | VQ35 Gen1 (350Z) | 189-B | ||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM |
| Exhaust: | 0.30mm | Set | COLD | at the | CAM | |
| Cam Lift: | Intake: | 11.75mm | Exhaust: | 11.30mm | ||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | ||
| Nett Valve Lift: | Intake: | 11.50mm | Exhaust: | 11.00mm | ||
| Advertised Duration @ | 0.30mm | Intake: | 282 | Exhaust: | 272 | |
| Duration @ | 1.00mm VALVE LIFT | Intake: | 240 | Exhaust: | 232 | |
| Timing @ | 1.00mm VALVE LIFT | IVO: | 5 ATDC | EVO: | 48 BBDC | |
| IVC: | 65 ABDC | EVC: | 4 ATDC | |||
| Suggested Centre Lines: | Intake: | 125 | Exhaust: | 112 | ||
| VALVE | Lift @ TDC | Intake: | 0.60mm | Exhaust: | 1.39 |
