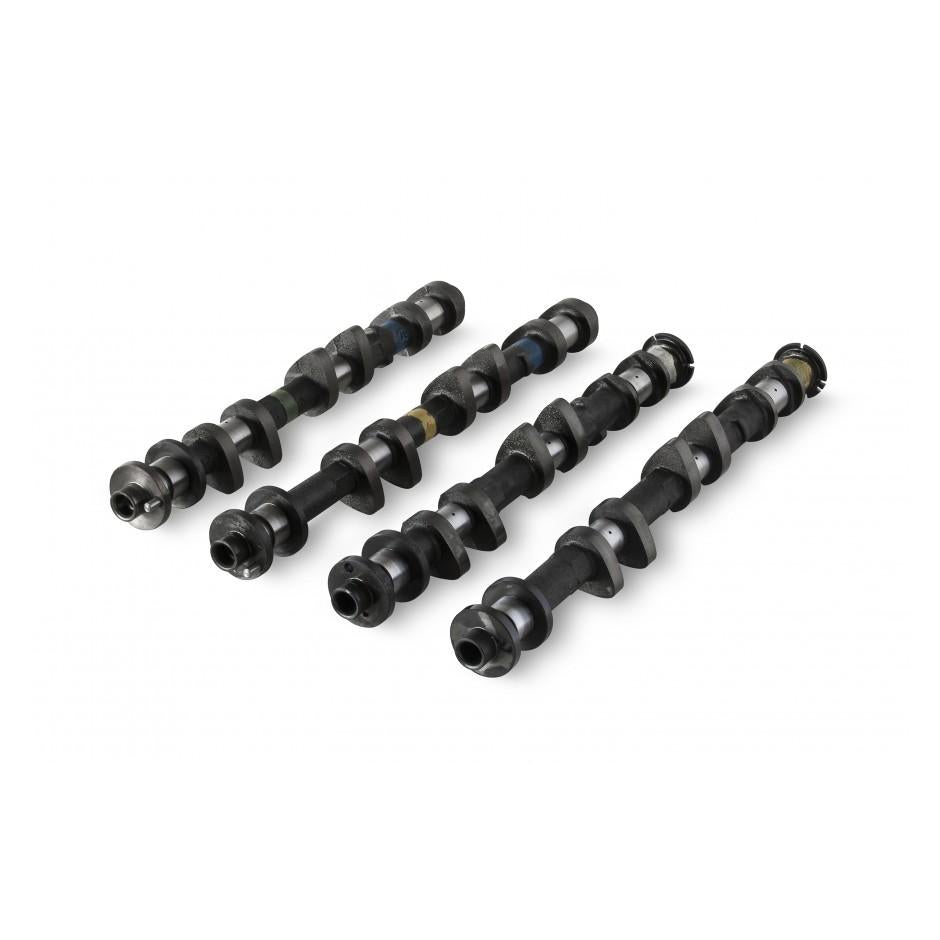

Kelford Cams 189-C Nissan VQ35 GEN 1 (350Z) CAMS

$2,409.25 NZD
SKU KC189-C
Buy now pay later,no extra cost!

Payments from $240.92 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

302/292 Degrees advertised duration. 11.50mm/11.00mm lift.

Additional Information:

Stage 3 cam to suit ultimate, fully modified naturaly aspirated engine builds with high compression, Cosworth manifold or IR system. Suitable for racing only.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN VQ35 Gen1 (350Z) 189-C
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 11.75mm Exhaust: 11.30mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.50mm Exhaust: 11.00mm
Advertised Duration @ 0.30mm Intake: 302 Exhaust: 292
Duration @ 1.00mm VALVE LIFT Intake: 256 Exhaust: 250
Timing @ 1.00mm VALVE LIFT IVO: 3 BTDC EVO: 55 BBDC
    IVC: 73 ABDC EVC: 15 ATDC
Suggested Centre Lines:   Intake: 125 Exhaust: 110
VALVE Lift @ TDC Intake: 1.31mm Exhaust: 2.62
