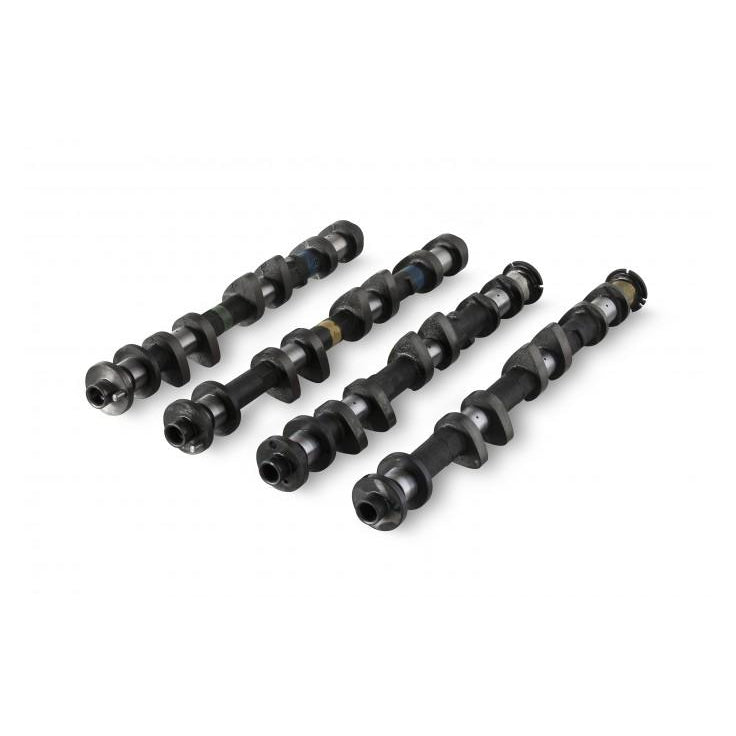

Kelford Cams 189-A Nissan VQ35 GEN 1 (350Z) CAMS
Buy now pay later,no extra cost!
Payments from $240.92 with

Note: Please check availability with us before ordering.
266/260 Degrees advertised duration. 10.75mm/10.35mm lift.
Additional Information:
Stage 1 cam to suit mild naturally aspirated engine builds for fast street performance.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | ||||
| NISSAN | VQ35 Gen1 (350Z) | 189-A | ||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM |
| Exhaust: | 0.30mm | Set | COLD | at the | CAM | |
| Cam Lift: | Intake: | 11.00mm | Exhaust: | 10.65mm | ||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | ||
| Nett Valve Lift: | Intake: | 10.75mm | Exhaust: | 10.35mm | ||
| Advertised Duration @ | 0.30mm | Intake: | 266 | Exhaust: | 260 | |
| Duration @ | 1.00mm VALVE LIFT | Intake: | 222 | Exhaust: | 216 | |
| Timing @ | 1.00mm VALVE LIFT | IVO: | 14 ATDC | EVO: | 44 BBDC | |
| IVC: | 56 ABDC | EVC: | 8 BTDC | |||
| Suggested Centre Lines: | Intake: | 125 | Exhaust: | 116 | ||
| VALVE | Lift @ TDC | Intake: | 0.15mm | Exhaust: | 0.29mm |
