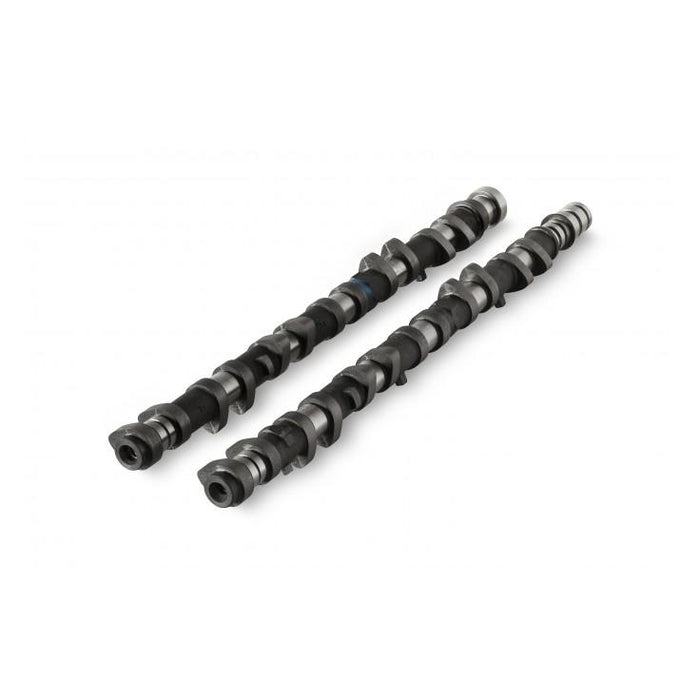

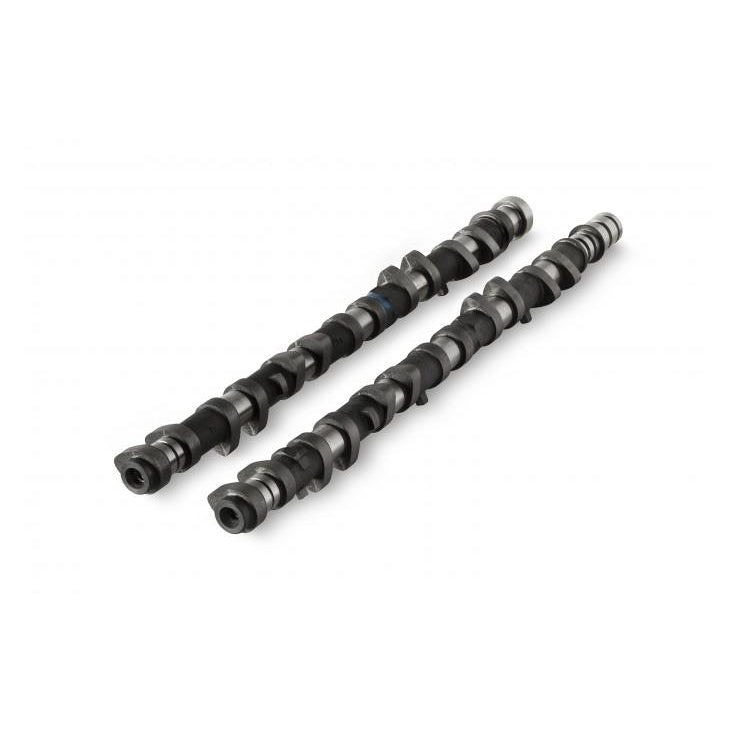

Kelford Cams V202-D Toyota Supra VVTi Billet Race Cams

Save 5%
Original Price $1,364.96 NZD
Current Price $1,296.71 NZD
SKU KCV202-D
Buy now pay later,no extra cost!

Payments from $129.67 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

272/278 Degrees advertised duration. 9.95mm/9.95mm lift. To suit Toyota 2JZ VVTi.


Additional Information:

272/278 Degree racing cams. These are our most popular cams for a vast range of motorsport applications. Requires valve spring upgrade, KVS02-BT.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
TOYOTA 2JZ VVTi V202-D
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 10.20mm Exhaust: 10.20mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.95mm Exhaust: 9.95mm
Advertised Duration @ 0.10mm Intake: 272 Exhaust: 278
Duration @ 1.00mm VALVE LIFT Intake: 236 Exhaust: 240
Timing @ 1.00mm VALVE LIFT IVO: EVO: 60 BBDC
    IVC: EVC: 0 TDC
Suggested Centre Lines:   Intake: VARI Exhaust: 120
VALVE Lift @ TDC Intake: Exhaust: 0.94
