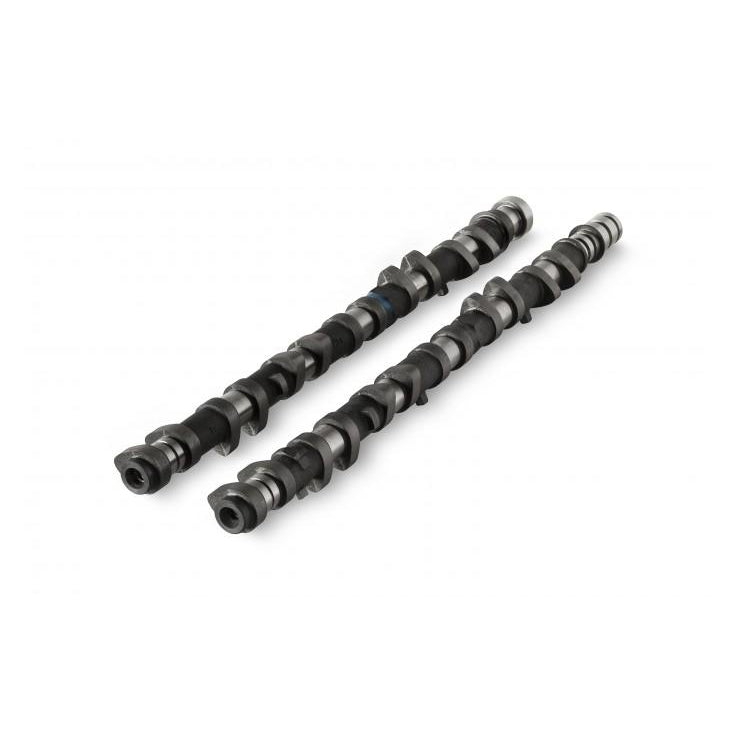

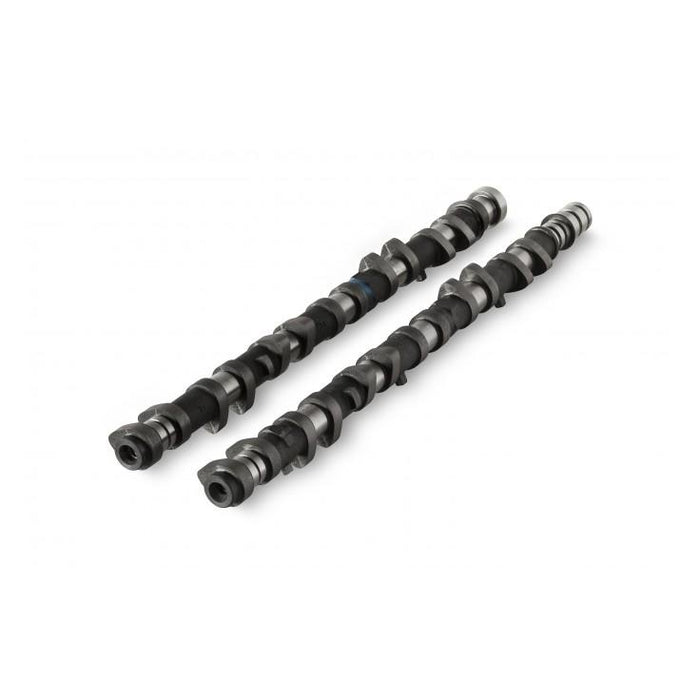

Kelford Cams V202-B Toyota Supra VVTi Billet Race Cams
Buy now pay later,no extra cost!
Payments from $129.67 with
Note: Please check availability with us before ordering.
260/260 Degrees advertised duration. 9.35mm/9.35mm lift. To suit Toyota 2JZ VVTi.
Additional Information:
Street performance cams to suit engines with turbo and ECU upgrades. Suits up to 30lb boost and 7500 RPM with our recommended valve spring. Will also drop in on stock spring.
Camshaft Specifications:
Engine Make: | Engine Model: | Part Number: | |||||
TOYOTA | 2JZ VVTi | V202-B | |||||
Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 9.60mm | Exhaust: | 9.60mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 9.35mm | Exhaust: | 9.35mm | |||
Advertised Duration @ | 0.10mm | Intake: | 260 | Exhaust: | 260 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 222 | Exhaust: | 222 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | EVO: | 50 BBDC | |||
IVC: | EVC: | 8 BTDC | |||||
Suggested Centre Lines: | Intake: | VARI | Exhaust: | 116 | |||
VALVE | Lift @ TDC | Intake: | Exhaust: | 0.26mm |
