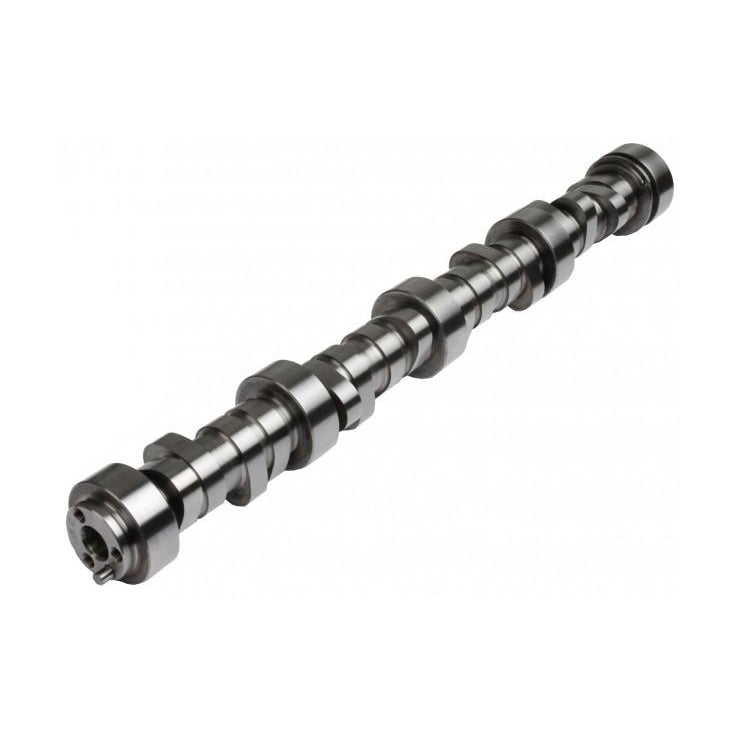

Kelford Cams SS108-R1 Chevrolet LS Series V8, High Performance Cam
by Kelford Cams
Save 5%
Original Price
$763.83 NZD
Current Price
$725.64 NZD
SKU KCSS108-R1
Buy now pay later,no extra cost!
Payments from $72.56 with
Enjoy now. Pay Later. Interest free. Learn More
Note: Please check availability with us before ordering.
236/254 Degrees duration @ 0.050" cam lift, .630"/.630" lift.
Additional Information:
Racing cam specifically designed for midrange throttle response in LS7 engines. Ideal for track racing and drift competition engines. Rough idle.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | ||||
| CHEVROLET | LS Series V8 | SS108-R1 | ||||
| Valve Clearance: | Intake: | Set | at the | |||
| Exhaust: | Set | at the | ||||
| Cam Lift: | Intake: | 0.371" | Exhaust: | 0.371" | ||
| Rocker Ratio: | Intake: | 1.7 | Exhaust: | 1.7 | ||
| Nett Valve Lift: | Intake: | 0.630" | Exhaust: | 0.630" | ||
| Advertised Duration @ | 0.006" | Intake: | 284 | Exhaust: | 306 | |
| Duration @ | 0.05" CAM LIFT | Intake: | 236 | Exhaust: | 254 | |
| Timing @ | 0.05" CAM LIFT | IVO: | 8 BTDC | EVO: | 59 BBDC | |
| IVC: | 48 ABDC | EVC: | 15 ATDC | |||
| Suggested Centre Lines: | Intake: | 110 | Exhaust: | 112 | ||
| CAM | Lift @ TDC | Intake: | 0.072" | Exhaust: | 0.095" |
