STM Tuned Small Battery Kit for Evo 4/5/6
Buy now pay later,no extra cost!
Payments from $34.95 with

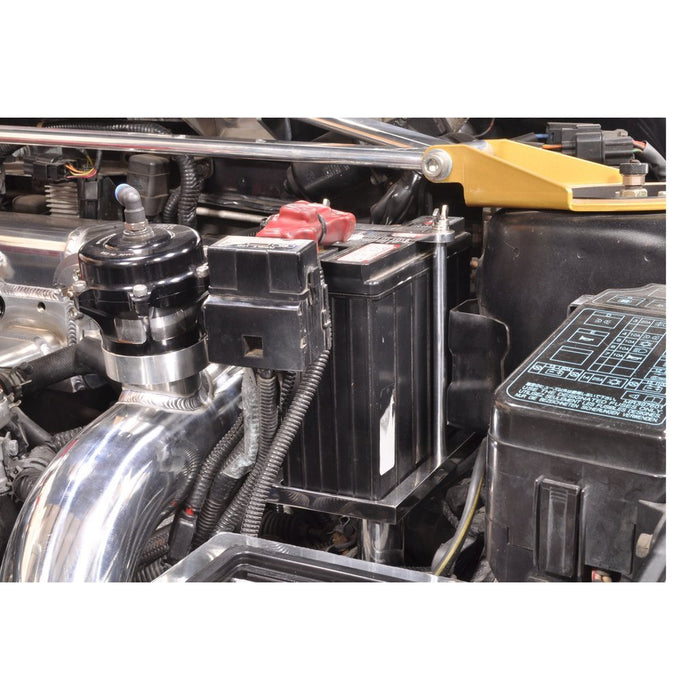

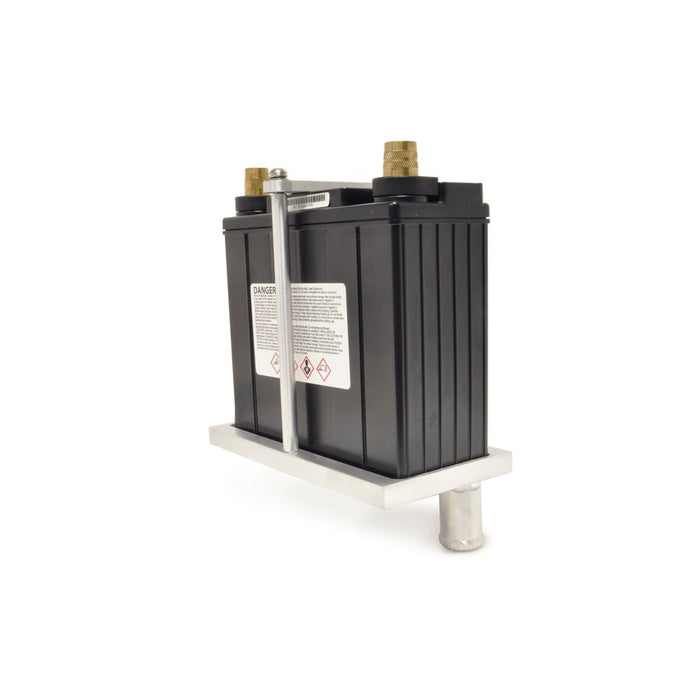

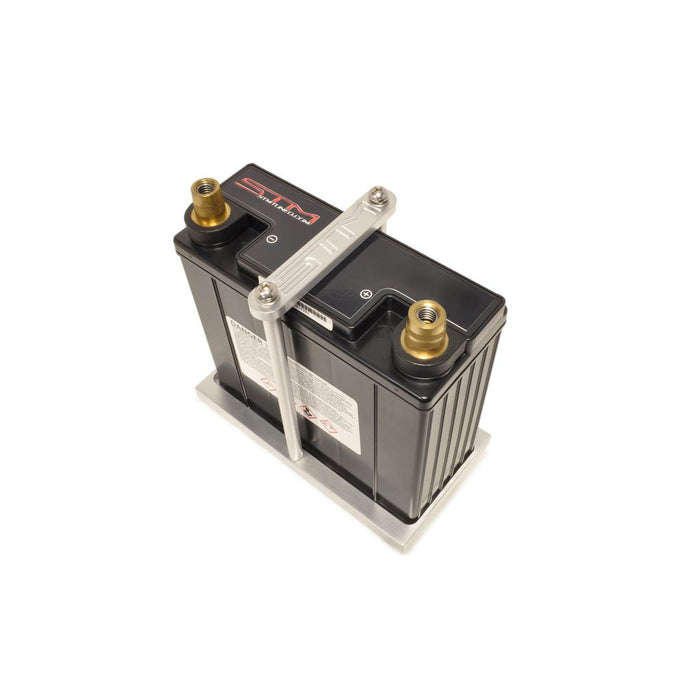

The STM Small Battery Kit for the Evolution 4/5/6 is an essential upgrade, allowing you to not only shed the weight of the giantic, factory brick battery, but this modification clears the path for new upper intercooler pipes. This kit is available with a brushed aluminum finish or the flashy, mirror polish and includes all necessary hardware for a simple, bolt-in install. No drilling necessary.

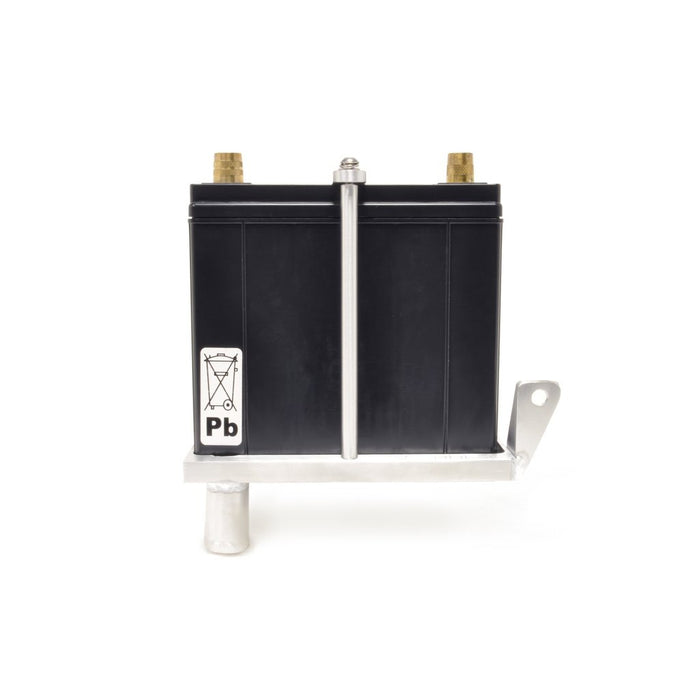

The STM battery kits utilize existing mounting points on the Evo for a clean, bolt-on install and includes the STM engraved billet aluminum base, stainless mounting hardware and your choice of STM tie down plate. This kit is available with or without the battery and terminals.
Features:

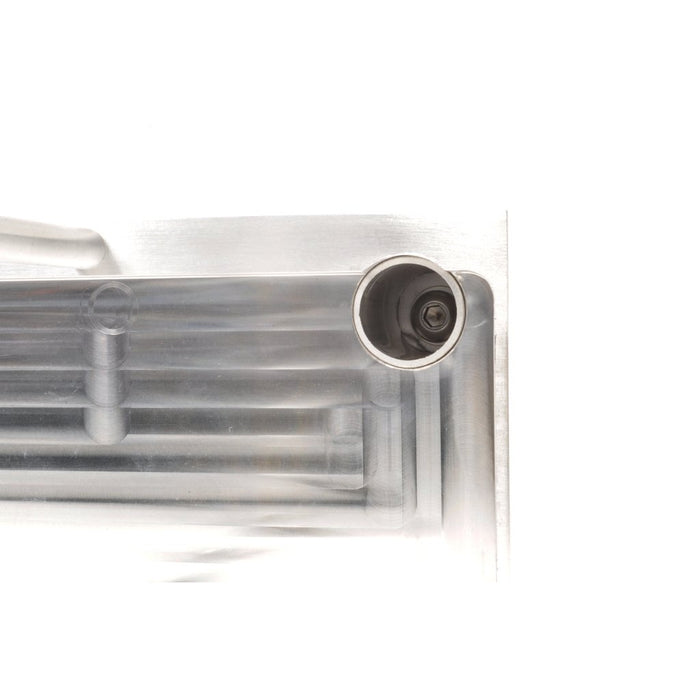

- Billet Aluminum Base
- Tig-Welded Aluminum
- CNC Engraved Plates
- Utilizes Existing Bolt Holes for Mounting
- Choice of Tie Down Plate
- Stainless Hardware
- Made in the USA!

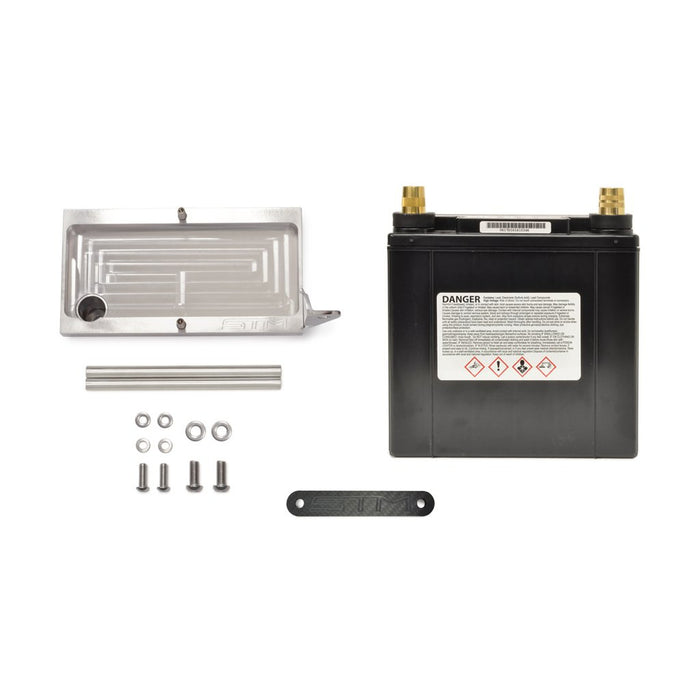

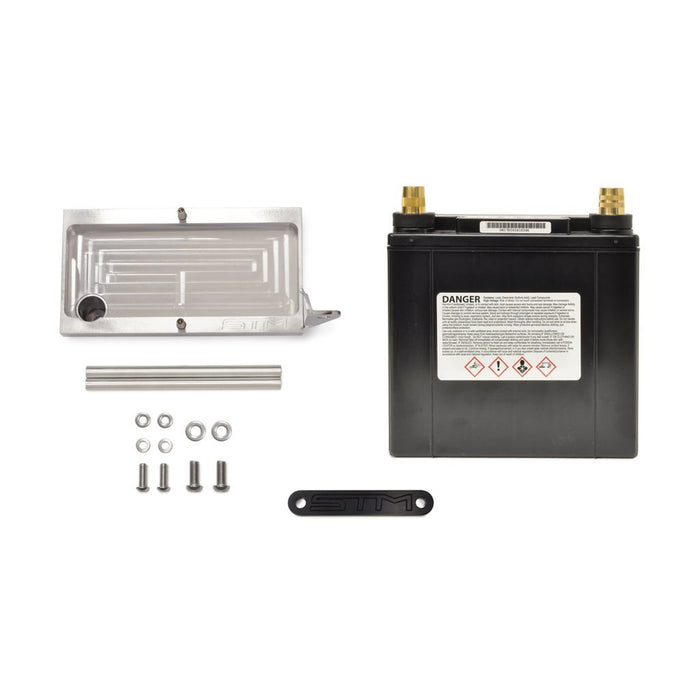

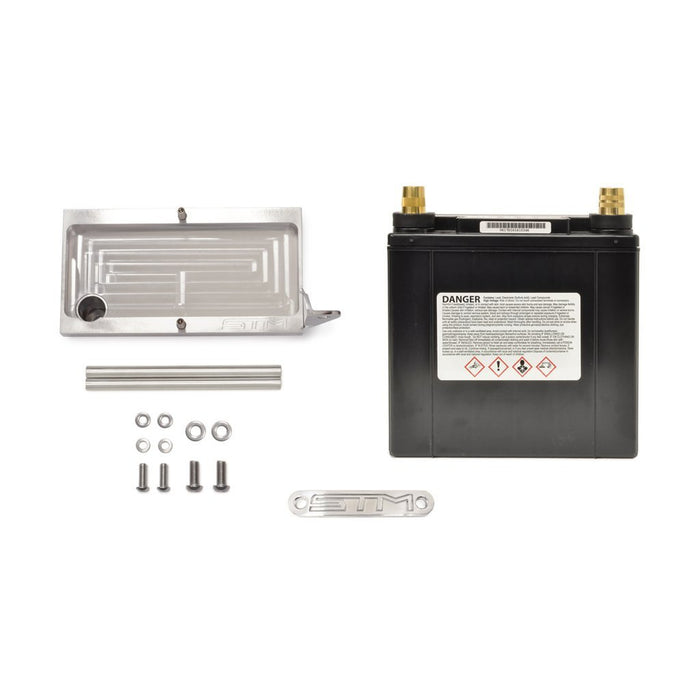

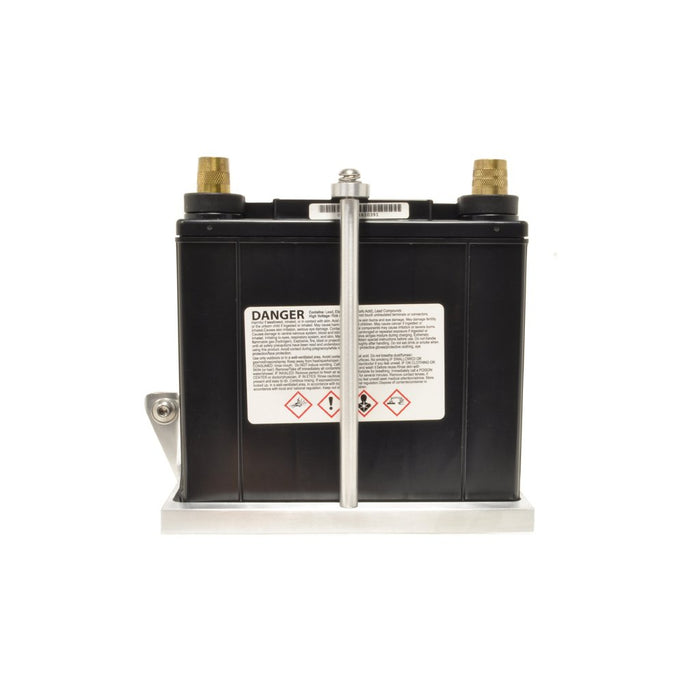

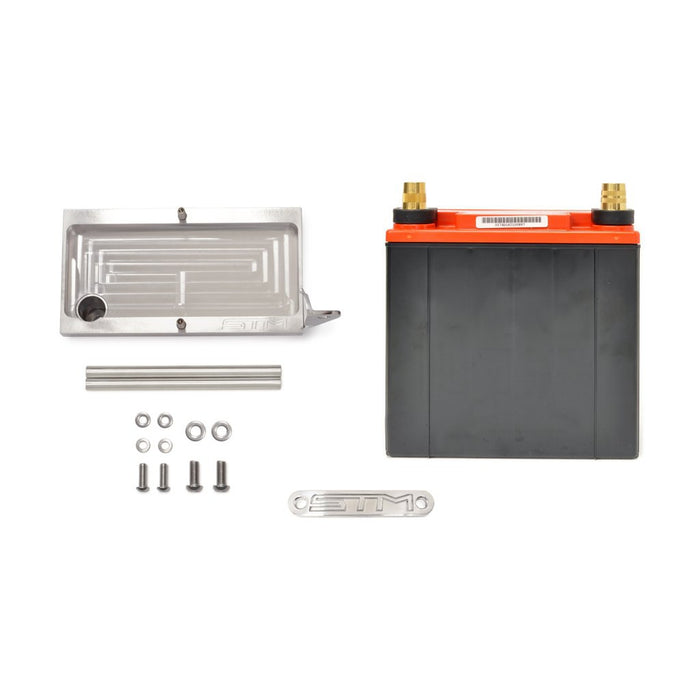

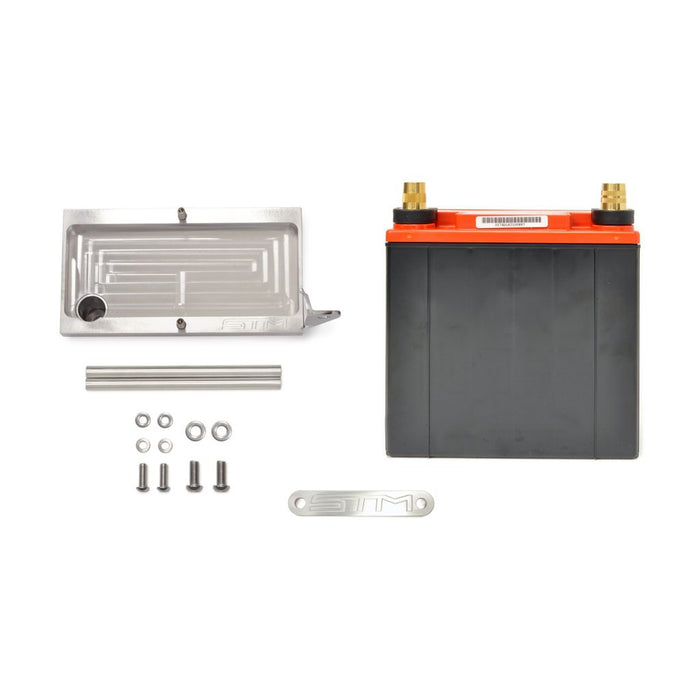

Full Battery Kit Includes:
- STM Aluminum Small Battery Tray and Hardware (Listed below)
- Choice of STM Tie Down
- Choice of Battery
- Battery Terminals (3217-0006)

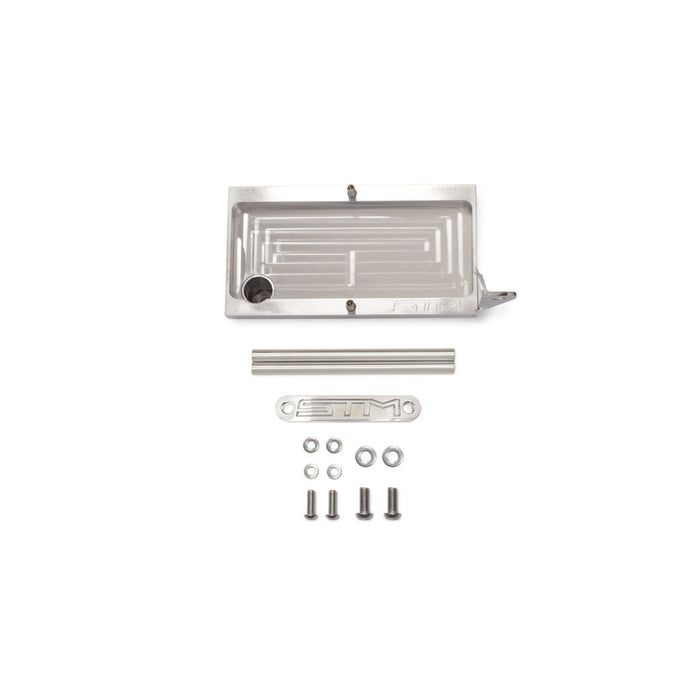

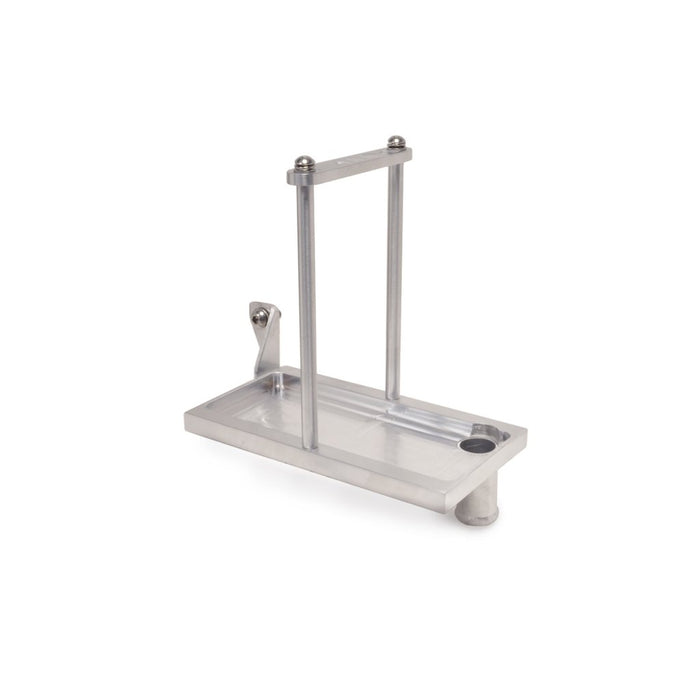

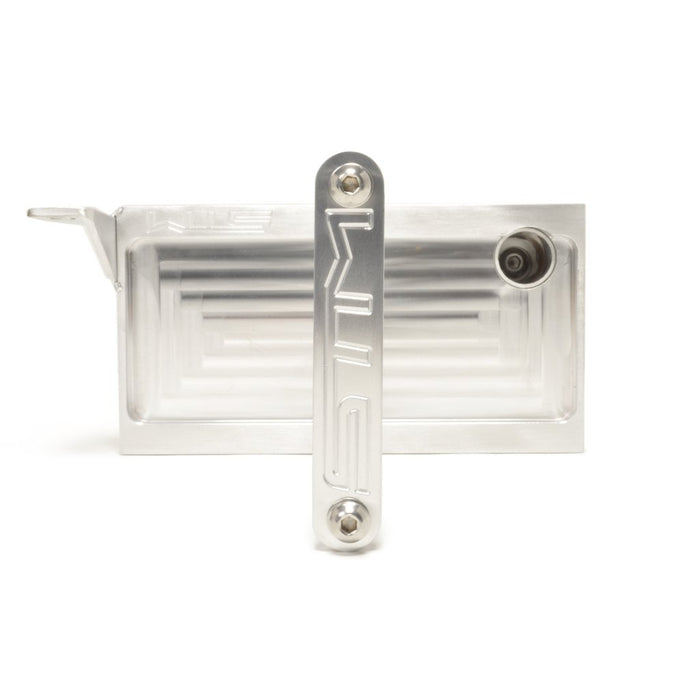

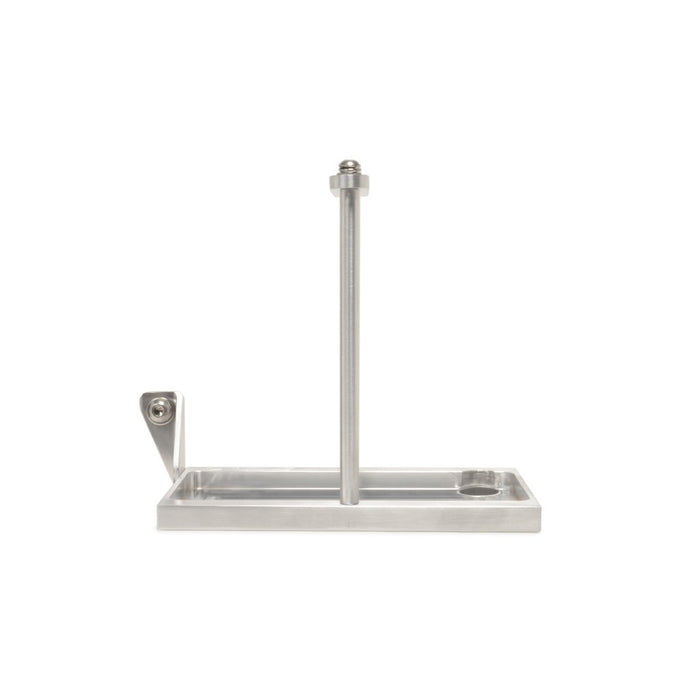

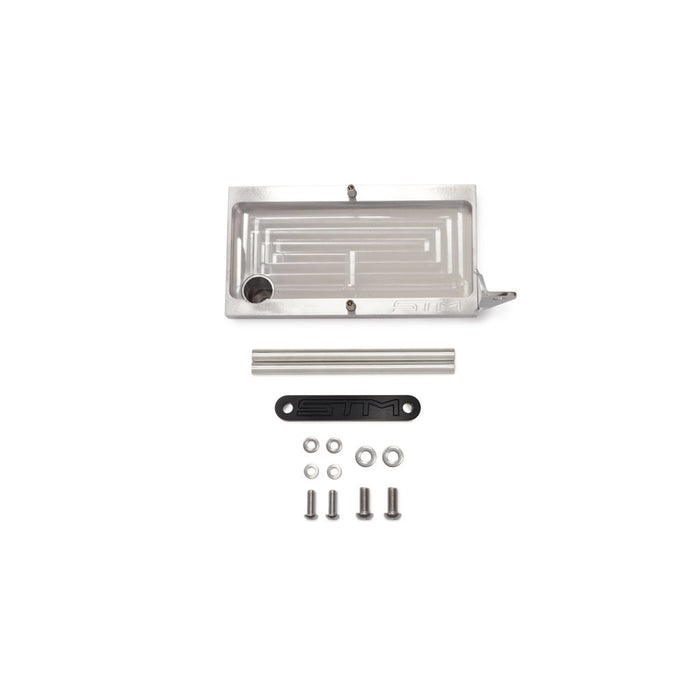

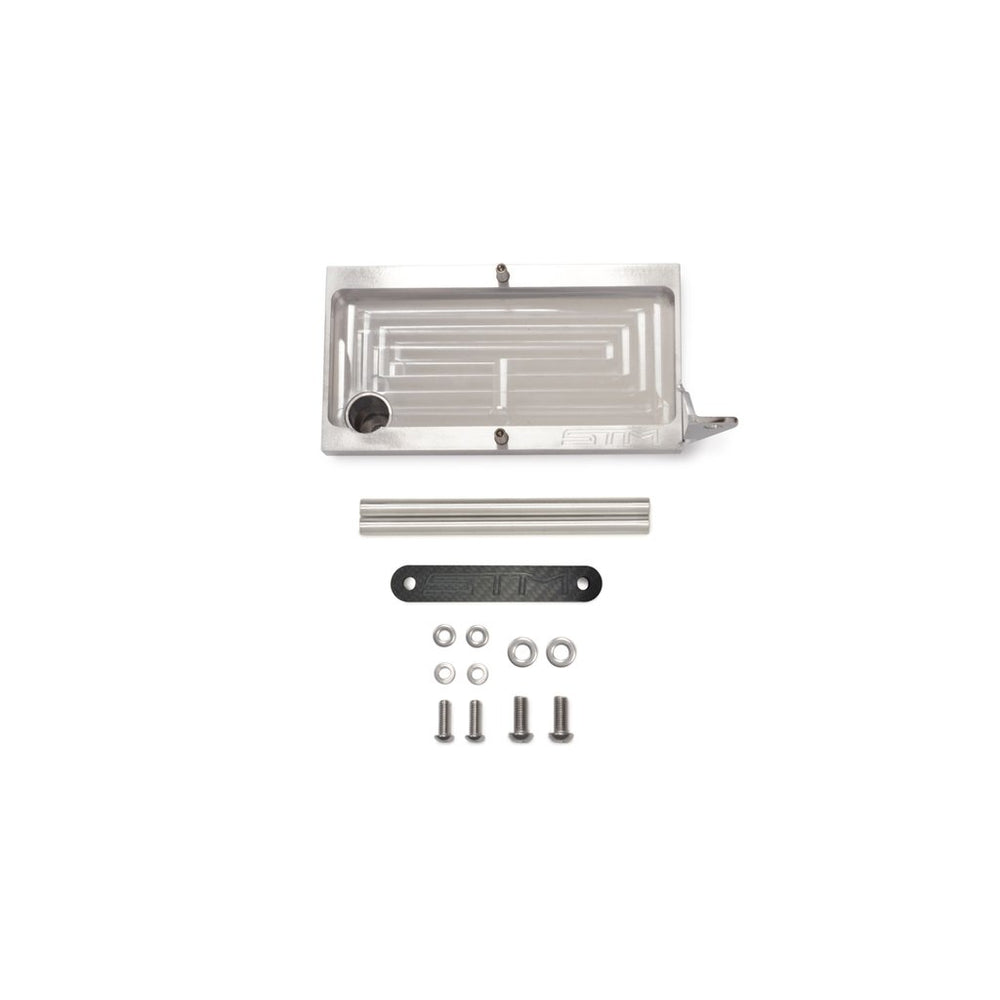

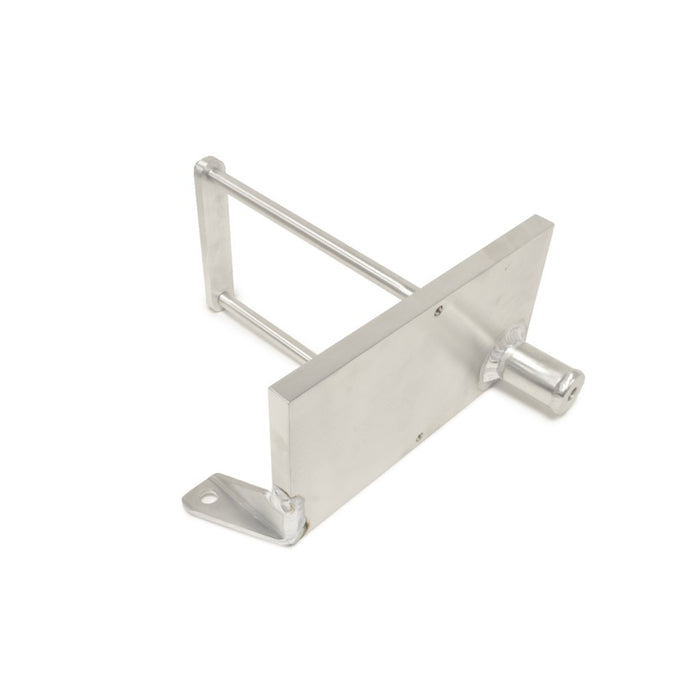

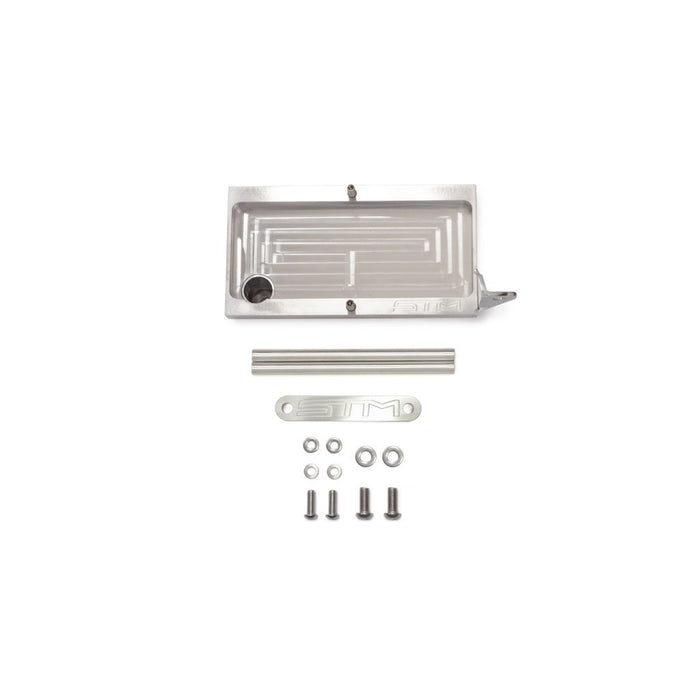

STM Battery Tray Includes:
- (1) STM Battery Tray
- (2) Post Braces
- (2) 1/4x20 Stainless Button Head Bolts
- (2) M6 Stainless Flat Washers
- (2) M6 Stainless Lock Washers
- (2) M8x20 Stainless Button Head Bolts
- (2) M8 Stainless Flat Washers
Install Notes:
Small batteries can fail if the posts are not torqued to 50 inch pounds. Additional torque will cause damage to your battery, so please be careful when installing.
Performance Notes:
While we, and most of the racing community, use these as replacement car batteries, these batteries are not intended for that use.
Warranty:
STM does not warranty batteries. We offer the STM Lifetime Guarantee on the STM Battery Tray, but we cannot warranty the batteries themselves. Please contact the manufacturer with any performance concerns.
STM Evo 4/5/6 Small Battery Kits:
| Stock Battery Weight: 37 pounds | ||
| STM Kit & Battery Specs | Full Kit Weight | |

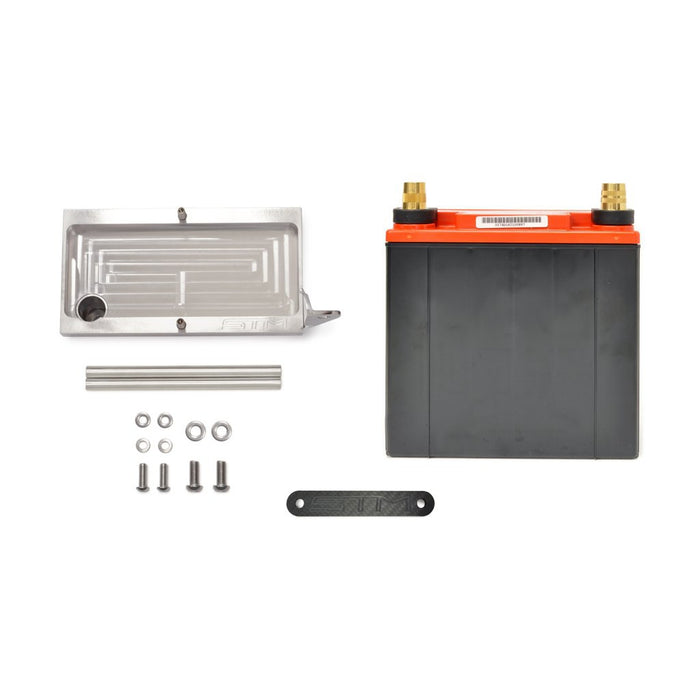

Odyssey PC680 Battery:
| Pulse (5-second) Hot Cranking Amps (PHCA): 520 | 16.00 pounds (Save 21 pounds vs stock) |
| Cold Cranking Amps (CCA): 170 | |
| 20Hr Nominal Capacity (Ah): 16 | |
| Reserve Capacity Minutes: 24 |
Genesis (16EP) G12V16Ah10EP Battery:
| Voltage: 12 | 15.25 pounds (Save 21.75 pounds vs stock) |
| Capacity: 16Ah @ 10Hr | |
| Terminal Type: M6 Threaded Insert | |
| Chemistry: Thin Plate Pure Lead-Tin | |
| Case Material: Flame Retardant ABS Plastic | |
| Mfg Warranty: 12 Month | |
| Cycle Charge Voltage: 14.7V to 15.0V at 77°F | |
| Standby Charge Voltage: 13.5V to 13.8V at 77°F | |
| Maximum Charge Current: No charge current limits | |
| Shelf Life w/o Charge: 2 years | |
| Operating Temperature: -40°F to 113°F | |
| Expected Trickle Life (@ 25°C): 10 years | |
| Capacity Range: 16-20Ah (~80-90wpc) |
